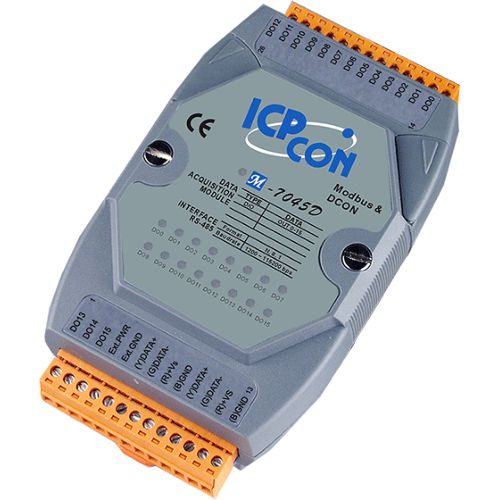

M-7045D-G CR, 16-ch Isolated (Source, PNP, 10~40 VDC) Digital output Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
M-7045D-G CR
16-ch Isolated (Source, PNP, 10~40 VDC) Digital output Module with LED Display, using DCON and Modbus Protocols (Gray Cover)
Digital Output
Channels: 16, Source, NMOS
Output Voltage: +10 ~ +40V
Output Current: 650mA per channel, Direct drive power relay module
Overvoltage Protection: 47 VDC
Overload Protection: Yes
Short-circuit and Overcurrent Protection: Yes, 1.4 A
Thermal Overload trip temperature: 150°C
4KV ESD Protection (IEC 61000-4-2): Yes, contact for each terminal
Intra-module Isolation, Field to Logic: 3750 Vrms
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
16 LEDs as Digital Output indicators (for M-7045D)
Power
Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 0.6 W (M-7045)/1.5 W(M-7045D)
Protocol
Support Modbus and DCON Protocol: Yes
Environment
Operating Temperature: -25 ~ 75°C
Storage Temperature: -40 ~ 85°C
Humidity: 5 ~ 95% RH, non-condensing
