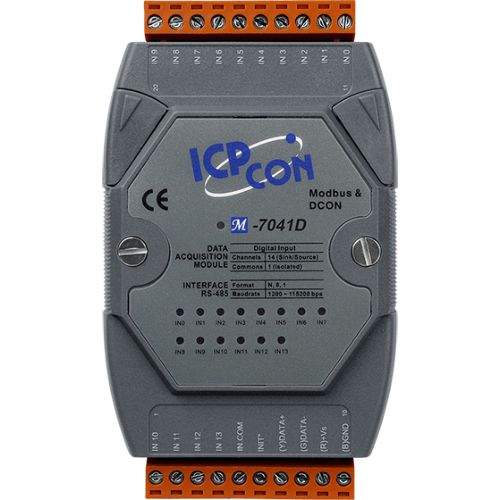

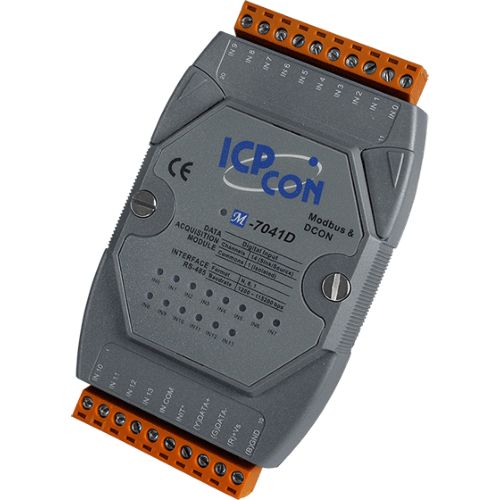

M-7041D-G CR ICP DAS DCON Modbus

14-ch Isolated (Wet, 4~30 VDC) Digital input Module with LED Display, using DCON and Modbus Protocols (Gray Cover)ICP DAS

M-7041D-G CR

14-ch Isolated (Wet, 4~30 VDC) Digital input Module with LED Display, using DCON and Modbus Protocols (Gray Cover)

M-7041D-G CR datasheet

Print Product Sheet

Need Help?

Write us
an email

Call us
051 6604005

Technical Information

Digital Input

Input Channels: 14
Input Type: Sink or Source,Isolated channel with common power or ground
Off Voltage Level: +1V Max
On Voltage Level: +4 ~ +30V
Input Impedance: 3K Ohms, 0.5W
Counters:
    Channels: 14
      Max. Counts: 16-bit (65535)
      Max. Input Frequency: 100Hz
      Min. Pulse Width: 5ms
Isolation Voltage: 3750 Vrms

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator
14 LEDs as Digital Input indicators (for M-7041D)

Power

Input Voltage Range: 10 ~ 30 VDC
Power Consumption: 0.2W (M-7041) / 0.9 W (M-7041D)

Protocol

Support Modbus and DCON Protocol: Yes

Environment

Operating Temperature: -25 ~ 75°C
Storage Temperature: -40 ~ 85°C
Humidity: 5 ~ 95% RH, non-condensing
