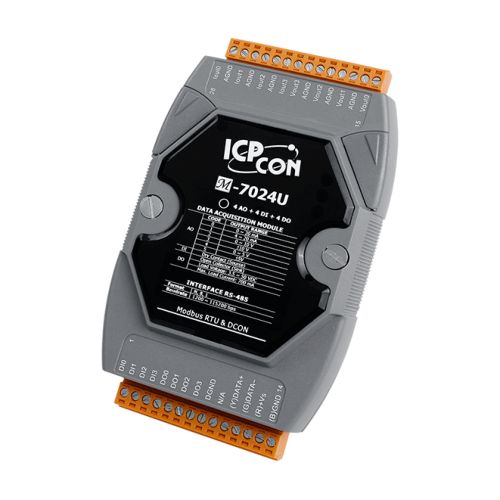

M-7024U-G CR, 4-ch 16-bit Analog output Module with 4 Digital input and 4 Digital output using DCON and Modbus Protocols (Gray Cover)
M-7024U-G CR
4-ch 16-bit Analog output Module with 4 Digital input and 4 Digital output using DCON and Modbus Protocols (Gray Cover)
Features
- Multi-function=4 AO + 4 DI + 4 DO
- Source Type Current Output
- 16-bit Analog Output
- Individual Channel Configuration
- Open Wire Detection for Current Output
- 8 kV ESD Protection
- Power-on Value Setting
- Safe Value Setting
Introduction
The M-7024U is a multi-function module that includes 4 analog output channels, 4 digital input channels, 4 digital output channels. It provides a programmable output range on all analog outputs channels (0 ~ 5 V, +/-5 V, 0 ~ 10 V, +/-10 V, +4 ~ +20 mA or 0 ~ +20 mA). Each analog output channel can be configured for an individual range and the module also features per-channel open wire detection for +4 ~ +20 mA outputs, together with 8 kV ESD Protection as well as 2500 VDC intra-module isolation. Options for configuring power-on and safe values are also included.
Applications
Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power Line
ESD (IEC 61000-4-2): ±8 kV Contact for each Terminal
LED Indicators
Status: 1 x Power and Communication
4 x Analog Input
4 x Digital Input
4 x Digital Output
Analog Output
Channels: 4
Type: Voltage
Current
Range: 0 ~+5 VDC, ±5 VDC, 0 ~ +10 VDC, ±10 VDC, 0 ~ +20 mA, +4 ~ +20 mA
Resolution: 16-bit
Accuracy: ±0.02%% of FSR
Short Circuit Protection: Yes
DA Output Response Time: 10 ms per channel
Programmable Output Slope: Voltage: 0.0625 ~ 512 V/Second
Current: 0.125 ~ 1024 mA/Second
Current Output Wiring: Source
Open Wire Detection: Yes, for 4 ~ 20 mA only
Current Load Resistance: 1000 Ω
Power-on Value: Yes, Programmable
Safe Value: Yes, Programmable
Digital Input/Counter
Channels: 4
Type: Dry Contact
Wet Contact
ON Voltage Level: Dry: Close to GND
Wet: +1 VDC Max.
OFF Voltage Level: Dry: Open
Wet:+4 ~ 30 VDC
Max. Counts: 16-bit (65535)
Frequency: 100 Hz
Min. Pulse Width: 5 ms
Effective Distance: 500 M Max.
Overvoltage Protection: +60 VDC
Digital Output
Channels: 4
Type: Open Collector
Sink/Source (NPN/PNP): Sink
Load Voltage: +3.5 VDC ~ +50 VDC
Load Current: 700 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A (with short-circuit protection)
Short-circuit Protection: Yes
Power on Value: Yes, Programmable
Safe Value: Yes, Programmable
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol: Modbus RTU, DCON
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 4 W
Mechanical
Dimensions (mm): 123 x 72 x 35 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
