features and benefits

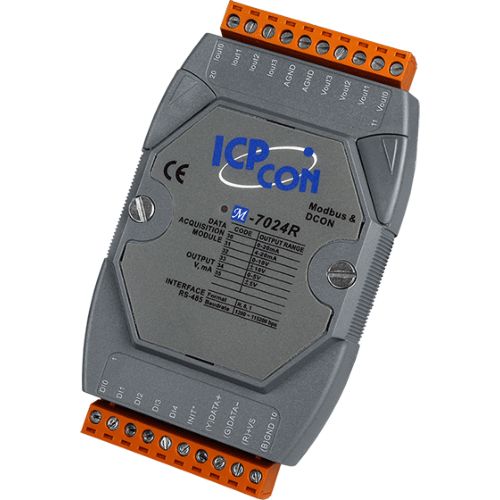

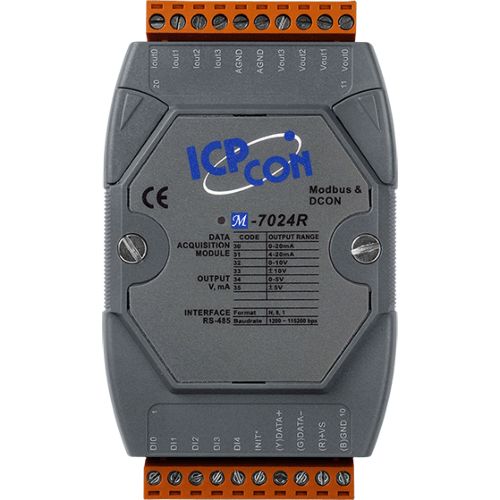

The M-7024R is a multi-function module that includes 4-channel analog output channels and 5-channel digital input channels.
The module provides current and voltage outputs and features 4 kV ESD protection and 3000 VDC intra-module isolation.
The M-7024R supports Modbus RTU and DCON protocols, which can be configured via software.
There are also options for configuring power-on and safe values.
All hardware specifications are the same as the I-7024R.
- 4 Analog Outputs and 5 Digital Inputs
- Software Selectable Current or Voltage Output
- Configurable Power-on Value and Safe Value Settings
- Programmable Output Slope
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
|---|
| RS Immunity (IEC 61000-4-3) | 5 V/m, 80 MHz ~ 1GHz |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Analog Output| Channels | 4 |
|---|
| Type | Voltage | Current |
|---|
| Range | Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V | Current: 0 ~ 20 mA, 4 ~ 20 mA |
|---|
| Resolution | 14-bit |
|---|
| Accuracy | ±0.1% of FSR |
|---|
| DA Output Response Time | 10 ms |
|---|
| Power-on Value | Programmable |
|---|
| Safe Value | Programmable |
|---|
Digital Input/Counter| Channels | 5 |
|---|
| Type | Dry Contact |
|---|
| Sink/Source (NPN/PNP) | Source |
|---|
| ON Voltage Level | Close to GND |
|---|
| OFF Voltage Level | Open |
|---|
| Max. Counts | 65535 (16-bit) |
|---|
| Frequency | 50 Hz |
|---|
| Min. Pulse Width | 10 ms |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
|---|
| Protocol | Modbus RTU, DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 3.2 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
