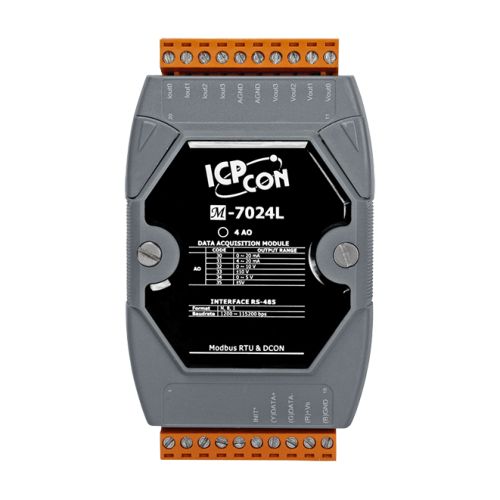

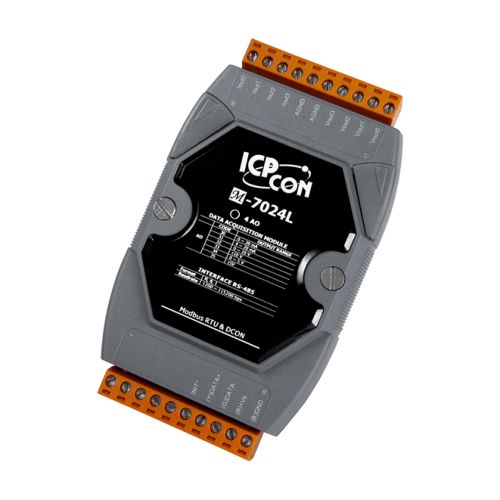

M-7024L-G CR ICP DAS DCON Modbus

The I-7024 is a 14-bit 4-channel analog output module that provides current and voltage outputs. There are options for power-on values and safe values. It features 3000 VDC intra-module isolation.
The I-7024R is the same as the I-7024 and provides additional 5-channel digital inputs and 4 KV ESD protection on each terminal.
The M-7024/M-7024R support Modbus RTU and DCON protocols and can be confi gured via software. Their hardware specifi cations are the same as those of the I-7024/I-7024R.
M-7024-G CR: 4-channel Analog Output Module with DCON and Modbus Protocol (Gray Cover) (RoHS)

• I-7024 / M-7024 / M-7024L: 4-channel Analog Output
• I-7024R / M-7024R: 4-channel Analog Output and 5-channel Digital Input
• Software Selectable Current or Voltage Output
• Power-on Value Setting
• Safe Value Setting
• 3000 VDC Intra-module Isolation
• Programmable Output Slope
• Dual Watchdog
• Wide Operating Temperature Range: -25 to +75°C

Analog Output

Output Channels: 4
Range: Voltage: 0 ~ 5 V, ±5 V, 0 ~ 10 V, ±10 V  -  Current: 0 ~ 20 mA, 4 ~ 20 mA
Resolution: 12-bit
Accuracy: 0.1%
DA Output Response Time: 10 ms
Opern Wire Detection (for current only): --
Channel To Channel Isolation: --
Power-on Value: Yes
Safe Value: Yes

Communication

Interface: RS-485
Bias Resistor: No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785)
Format: (N, 8, 1)(N, 8, 2)(E, 8, 1)(O, 8, 1)
Baud Rate: 1200 ~ 115200 bps
Accuracy: Modbus RTU, DCON
Dual Watchdog: Yes, Module (1.6 seconds), Communication (Programmable)

LED Indicator/ Display

System LED Indicator: Yes, 1 LED as Power/Communication Indicator
I/O LED Indicator: --
7-Segment LED Display: --

Isolation

Intra-Module Isolation, Field-to-Logic: 3000 VDC
EMS Protection (IEC 61000-4-2): ±8 kV Contact for Each Terminal
EFT (IEC 61000-4-4): ±4 kV to Power Line
RS (IEC 61000-4-3): 5 V/m, 80 MHz ~ 1GHz

Power

Reverse Polarity Protection: Yes
Input Range: +10 ~ 30 VDC
Consumption: 2.7 W

Mechanical

Dimensions (L x W x H): 123 mm x 72 mm x 35 mm
Installation: DIN-Rail or Wall Mounting

Environment

Operating Temp.: -25 to +75°C
Storage Temp.: -40 to +85°C
Humidity: 10 to 95% RH, Non-condensing
