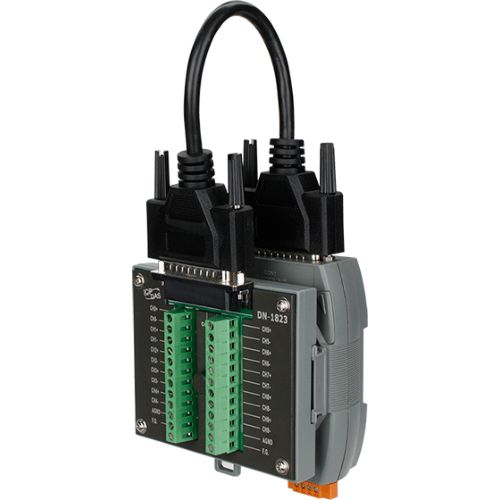

M-7019Z-G/S3 CR, 10-ch Universal Analog input Module using DCON and Modbus Protocols (Gray Cover) Includes DN-1823 Daughter Board, CA-2525015D 15 cm Cable and Plastic DIN Rail (4PAPP-006-G)
M-7019Z-G/S3 CR
10-ch Universal Analog input Module using DCON and Modbus Protocols (Gray Cover) Includes DN-1823 Daughter Board, CA-2525015D 15 cm Cable and Plastic DIN Rail (4PAPP-006-G)
Features
- 10-channel Analog Input
- Individual Channel Configuration
- Open Thermocouple Detection
- Temperature Output Consistency
- Stable Temperature Output in the Field
- 240 Vrms Overvoltage Protection
- Jumper Selectable Voltage or Current Input
- 4 kV ESD Protection
- Dual Watchdog
- 3000 VDC Intra-module Isolation, Field to Logic
Introduction
The M-7019Z is a 10-channel universal analog input module with an RS-485 interface that is a specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field. The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, the M-7019Z also supports voltage and current inputs. The voltage input range can be form +/-15 mV to +/-10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or +/- 20 mA. Up to 10 analog inputs of different types can be connected to a single module. Overvoltage protection of up to 240 Vrms is provided. The module also features per-channel open wire detection for thermocouple and 4 ~ 20 mA inputs.
Applications
- Building Automation
- Factory Automation
- Machine Automation
- Remote Maintenance
- Remote Diagnosis
- Testing Equipment
Specifications
CPU Module
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation: 3000 VDC
EMS Protection
ESD (IEC 61000-4-2): +/-4 kV Contact for Each Terminal
LED Indicators
Status: 1 x Power and Communication
Analog Input
Channels: 10 Differential
Type: Voltage
Current
Thermocouple
Sensor Type: Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710
Temperature Output Consistency: Yes
Stable Temperature Output in the Field: Yes
Resolution: 16-bit
Accuracy: ±0.1% of FSR
Sampling Rate: 10 Samples/Second
Bandwidth: 15.7 Hz
Input Impedance: Voltage Input: >400 kΩ
Current Input: 125 Ω
Common Mode Rejection: 86 dB Min.
Normal Mode Rejection: 100 dB
Overvoltage Protection: 240 Vrms
Individual Channel Configuration: Yes
Open Wire Detection: Yes, (Software Selectable)
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +30 VDC
Consumption: 1.8 W Max.
Mechanical
Dimensions (mm): M-7019Z: 116 x 73 x 34 (W x L x H)
DN-1823: 100 x 103 x 27 (W x L x D)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
