features and benefits
The M-7019Z is a 10-channel universal analog input module with an RS-485 interface that is specially designed for extremely accurate thermocouple measurement and features automatic cold-junction compensation for each channel to ensure temperature output consistency and stable temperature output in the field.
The innovative design of the enhanced model ensures that thermocouple measurement is more accurate than with the earlier design. Besides the thermocouple inputs, The M-7019Z also supports voltage and current inputs.
The voltage input range can be from ±15 mV to ±10 V, and the current input range can be either 4 ~ 20 mA, 0 ~ 20 mA, or ± 20 mA.
Up to 10 analog inputs of different types can be connected to a single module.The module also provides up to 240 Vrms overvoltage protection and features per-channel open wire detection for the thermocouple and +4 ~ +20 mA input types.
- 10 Analog Inputs
- Provides Stable and Consistent Temperature Output
- Jumper Selectable Voltage or Current Input
- High Over-voltage Input Protection
- High Common Voltage Protection
- Individual Channel Configuration
- Open Thermocouple Detection
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Analog Input| Channels | 10 Differential |
|---|
| Type | Voltage | Current | Thermocouple |
|---|
| Sensor Type | Thermocouple: J, K, T, E, R, S, B, N, C, L, M, LDIN43710 |
|---|
| Stable and Consistent Temperature Output | Yes |
|---|
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V | Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (Jumper selectable) |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | ±0.1% of FSR |
|---|
| Sampling Rate | 10 Hz (Total) |
|---|
| Input Impedance | Voltage: 2 MΩ | Current: 125 Ω | Thermocouple: > 400 kΩ |
|---|
| Common Voltage Protection | ±200 VDC |
|---|
| Overvoltage Protection | 240 Vrms |
|---|
| Individual Channel Configuration | Yes |
|---|
| Open Wire Detection | For Thermocouple (Software Selectable) and 4 ~ 20 mA |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
|---|
| Protocol | Modbus RTU, DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 1.8 W Max. |
|---|

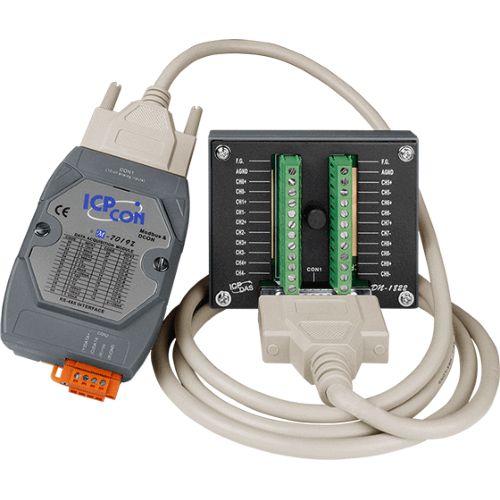

Mechanical| Dimensions (mm) | M-7019Z: 73 x 116 x 34 (W x L x H) | DN-1822: 103 x 96 x 27 (W x L x D) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 90% RH, Non-condensing |
|---|
