M-7018Z-G/S CR

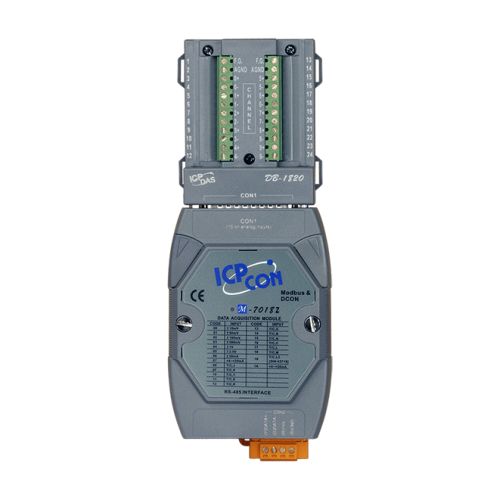

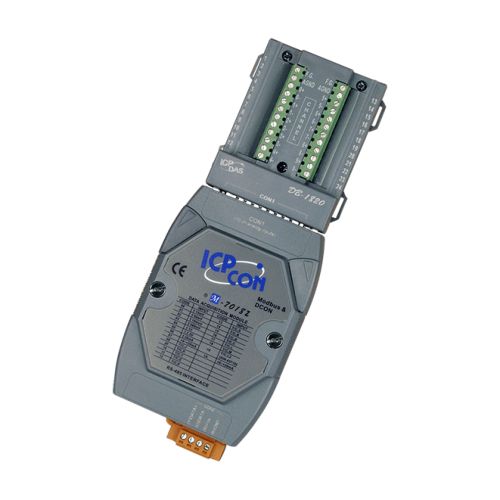

10-ch Thermocouple Input Module using DCON and Modbus Protocols (Gray Cover) Includes DB-1820 Daughter Board and Plastic DIN Rail (4PAPP-006-G)
Analog Input
Input Channels: 10 Differential
Input Type: +/- 15mV, +/- 50mV, +/- 100mV, +/- 500mV, +/- 1V, +/- 2.5V
+/-20mA, 0~20mA, 4~20mA (Requires Optional External 125 Ohm Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710)
Resolution: 16-bit
Sampling Rate: 10 Samples/Sec (Total)
Accuracy: +/- 0.1 %
-3dB BandWidth: 15.7 Hz
Zero Drift: +/- 0.5 μV/°C
Span Drift: +/- 25 ppm/°C
Common Mode Rejection: 150 dB
Normal Mode Rejection: 100 dB
Input Impedance: >500k Ohms
Over voltage Protection: 240 Vrms
Open Thermocouple Detection: Yes
Individual Channel Configuration: Yes
Intra-module Isolation, Field to Logic: 3000 VDC
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200 bps
DB-1820 (3.81mm pitch)
Wire Strip Length: 4 ~ 5 mm
Wire Range: 16 ~ 24 AWG
DN-1822 (5.08mm ptich)
Wire Strip Length: 4 ~ 5 mm
Wire Range: 14 ~ 24 AWG
LED Display
1 LED as Power/Communication Indicator
Power
Input: +10 ~ +30 VDC
Power Consumption: 1.0W
Protocol
Support Modbus and DCON Protocol: Yes
Environment
Operating Temperature: -25 ~ 75 °C
Storage Temperature: -40 ~ 85 °C
Humidity: 5 ~ 95% RH, Non-condensing
