features and benefits

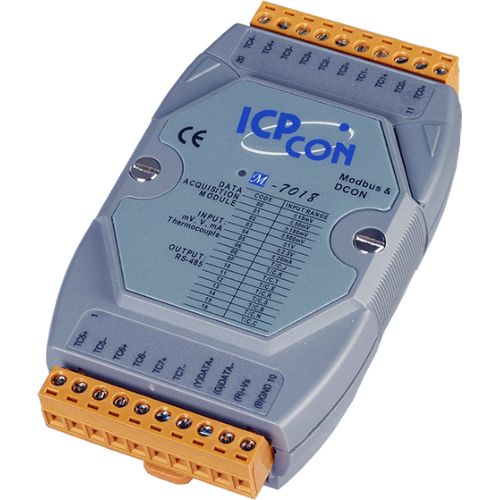

The M-7018/M-7018R is an 8-channel analog input module that supports current, voltage, and thermocouple input.
The M-7018R is an upgraded version of the M-7018 that includes an extremely high-quality protection mechanism where the overvoltage protection can be as high as 240 Vrms.
The M-7018R is more suitable for critically harsh environments, and the newly-added open thermocouple detection feature makes The M-7018R more attractive than ever. The M-7018/M-7018R also features 4 kV ESD protection and 3000 VDC intra-module isolation.
The M-7018/M-7018R supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7018/I-7018R.
- 8 Differential Analog Inputs
- Current, Voltage, and Thermocouple Inputs
- Built-in Dual Watchdog
specifications
0| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
|---|
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Analog Input| Channels | 8 Differential |
|---|
| Type | Voltage | Current | Thermocouple |
|---|
| Sensor Type | Thermocouple: J, K, T, E, R, S, B, N, C |
|---|
| Range | Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V | Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (requires an optional external 125 Ω resistor) |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | ±0.1% of FSR |
|---|
| Sampling Rate | 10 Hz (Total) |
|---|
| Input Impedance | > 400 kΩ |
|---|
| Common Voltage Protection | 25 VDC |
|---|
| Overvoltage Protection | ±120 VDC |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
|---|
| Protocol | Modbus RTU, DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 1.0 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
