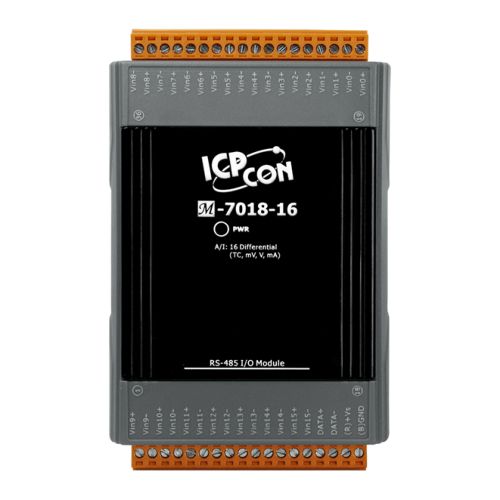

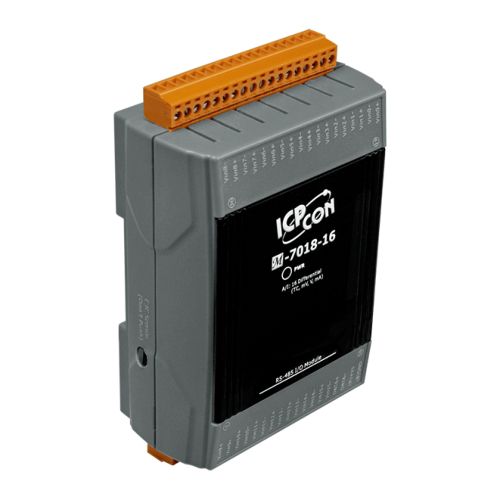

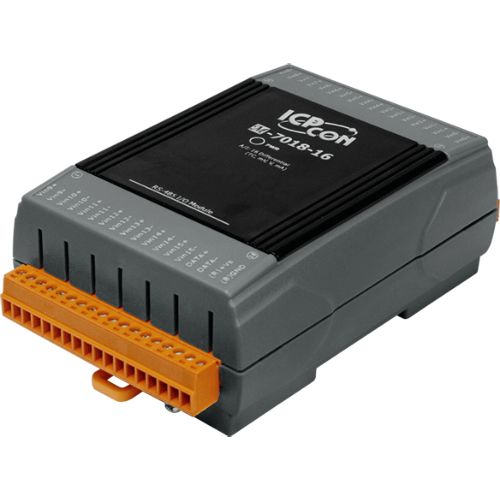

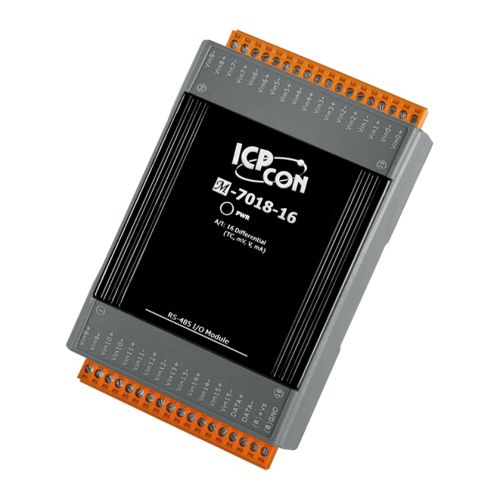

M-7018-16-G CR ICP DAS DCON Modbus



The M-7018-16 is an analog input module that includes 16 differential analog input channels. The voltage input range can be from ±15 mV to ±2.5 V, the current input range can be either +4 to +20 mA, 0 to +20 mA, or ±20 mA, and types J, K, T, E, R, S, B, N, C, L, M, LDIN43710 thermocouple can be used for the thermocouple input. Overvoltage protection of up to 30 VDC is provided. The module also features per-channel open wire detection for the thermocouple input types, and provides 4 kV ESD protection as well as 3000 VDC intra-module isolation.



Building Automation

Factory Automation

Machine Automation

Remote Maintenance

Remote Diagnosis

Testing Equipment



Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)



Intra-module Isolation: 3000 VDC

EMS Protection:

EFT (IEC 61000-4-4): ±4 kV to Power

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

Surge (IEC 61000-4-5): ±2 kV for Power Line



Status: 1 x Power and Communication



Channels: 16 Differential

Type: Voltage

Current

Thermocouple

Sensor Type: Thermocouple: J, K, T, E, R, S, B, N, C

Range: Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V

Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (requires an optional external 125 Ω resistor)

Resolution: 16-bit

Accuracy: ±0.1% of FSR

Sampling Rate: 10 Hz (Total)

Input Impedance: > 400 kΩ

Common Voltage Protection: 25 VDC

Overvoltage Protection: ±30 VDC



Open Wire Detection: Yes



Ports: 1 x RS-485

Baud Rate: 1200 to 115200 bps

Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)

Protocol: Modbus RTU, DCON



Reverse Polarity Protection: Yes

Input Range: +10 ~ +30 VDC

Consumption: 0.5 W



Dimensions (mm): 120 x 76 x 42 (W x L x H)

Installation: DIN-Rail



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +85 °C

Humidity: 10 ~ 95% RH, Non-condensing
