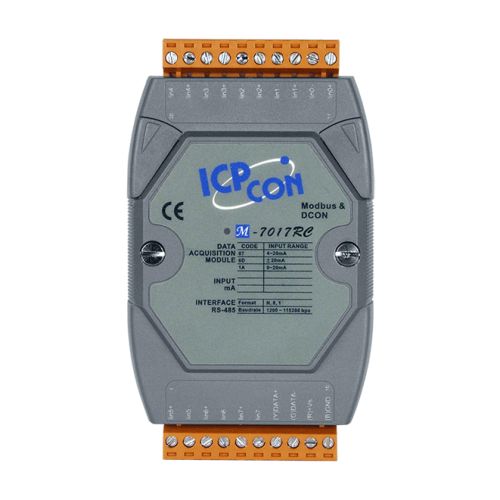

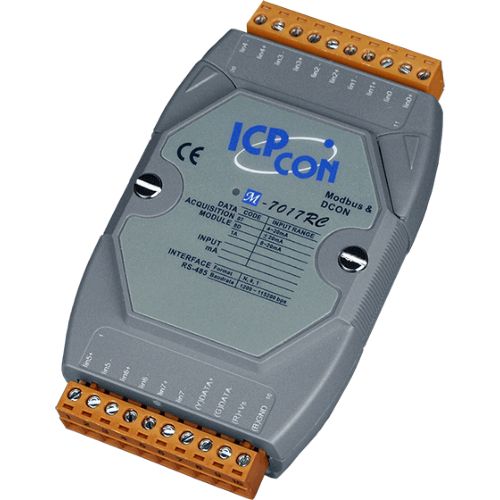

M-7017RC-G CR ICP DAS DCON Modbus

Analog Input

Input Channels: 8 differential
Input Type: +/-20mA, 0~20mA, 4~20mA
Resolution: 16-bit (Normal Mode) / 12-bit (Fast Mode)
Sampling Rate: 10 samples/ second (Normal Mode) / 60 sample/ second (Fast Mode)
Accuracy: +/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better
Band Width: 15.7Hz (Normal Mode) / 78.7Hz (Fast Mode)
Zero Drift: +/-20uV/°C
Span Drift: +/-25ppm/°C
Input Impedance: 125Ohms
Common Mode Rejection: 86dB min.
Normal Mode Rejection: 100dB
Common Voltage: +/-200VDC
4KV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic: 3000 VDC

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator

Power

Input: +10 to +30 VDC
Power Consumption: 1.3W

Protocol

Support Modbus and DCON Protocol: Yes

Environment

Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
