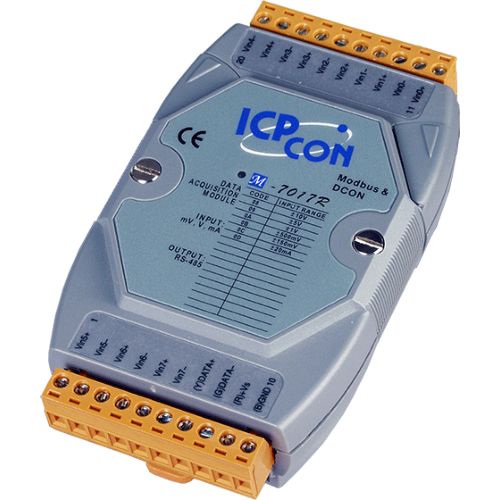

M-7017R-G CR ICP DAS DCON Modbus

Analog Input

Input Channels: 8 differential
Input Type: +/-500mV, +/-1V, +/-5V, +/-10V
+/-20mA (requires optional external 125Ω resistor)
Resolution: 16-bit (Normal Mode) / 12-bit (Fast Mode)
Sampling Rate: 10 samples/ second (Normal Mode) / 60 samples/ second (Fast Mode) total
Accuracy: +/-0.1% (Normal Mode) / +/-0.5% (Fast Mode) or better
Band Width: 15.7Hz (Normal Mode) / 78.7Hz (Fast Mode)
Zero drift: +/-20uV/°C
Span drift: +/-25ppm/°C
Input Impedance: 2M Ohms
Common Mode Rejection: 86dB min.
Normal Mode Rejection: 100dB
Over Voltage Protection: 240 Vrms
4KV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic: 3000 VDC

Interface

Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps

LED Display

1 LED as Power/ Communication indicator

Power

Input: +10 to +30 Vdc
Power Consumption: 1.3W

Protocol

Support Modbus and DCON Protocol: Yes

Environment

Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
