features and benefits

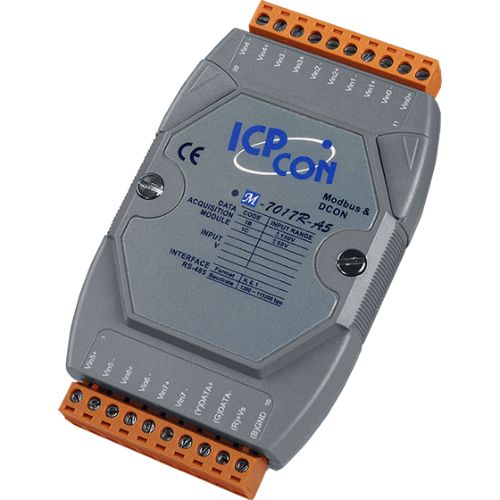

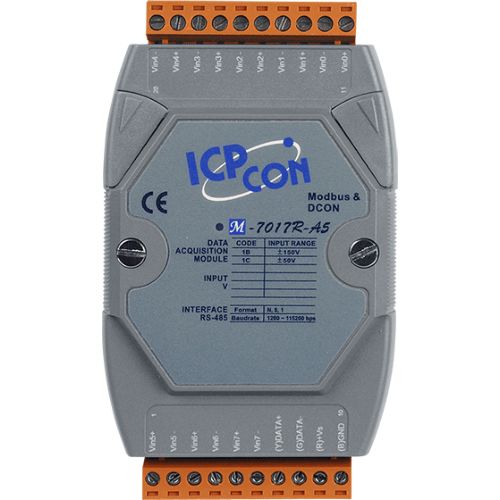

The M-7017R-A5 is an 8-channel analog input module that is specially designed for high voltage input and has an input range of between -50 V ~ +50 V or -150 V ~ +150 V.
The sampling rate of the M-7017R-A5 is adjustable, meaning that either fast mode or normal mode can be set.
The M-7017R-A5 also has 4 kV ESD protection as well as 3000 VDC intra-module isolation.
The M-7017R-A5 supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7017R-A5.
- High Voltage Input
- High Over-voltage Input Protection
- High Common Voltage Protection
- Adjustable Sampling Rate (Fast/Normal Mode)
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
|---|
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Analog Input| Channels | 8 Differential |
|---|
| Type | Voltage |
|---|
| Range | ±50 V, ±150 V |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | Normal Mode: 0.1% of FSR | Fast Mode: 0.5% of FSR |
|---|
| Sampling Rate | Normal Mode: 10 Hz | Fast Mode: 50 Hz |
|---|
| Input Impedance | Voltage: 290 kΩ |
|---|
| Common Voltage Protection | ±200 VDC |
|---|
| Overvoltage Protection | ±200 VDC |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1) |
|---|
| Protocol | Modbus RTU, DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 1.6 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
