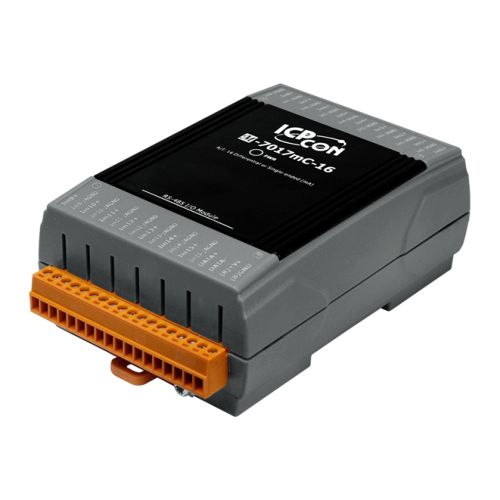

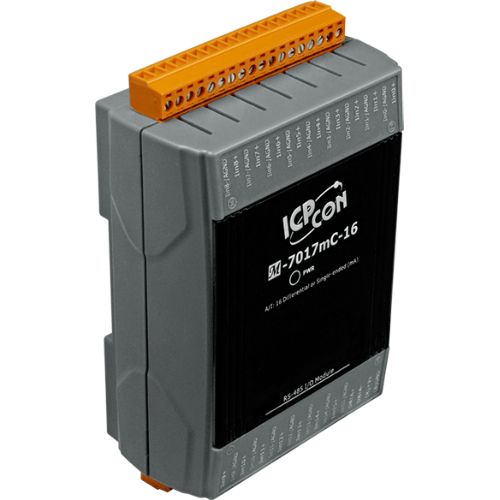

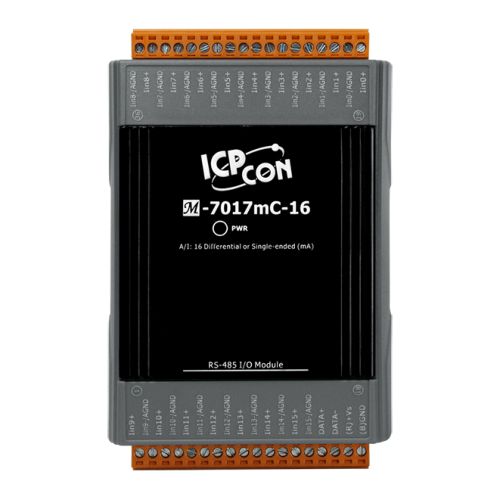

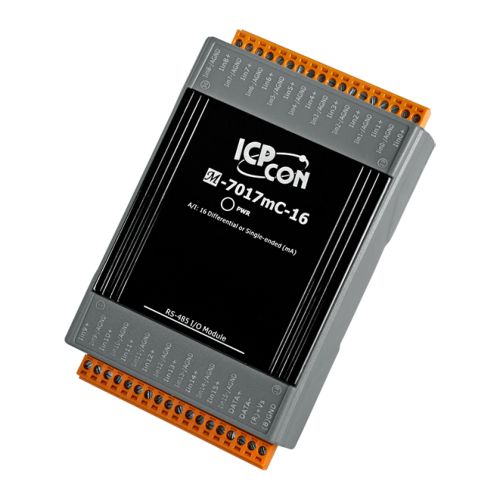

M-7017mC-16-G CR, 16-ch Current Input Module with Data Logger using DCON and Modbus Protocols (Gray Cover)
M-7017mC-16-G CR
16-ch Current Input Module with Data Logger using DCON and Modbus Protocols (Gray Cover)
Features
- 16-channel Current Input
- Jumper Selectable Differential or Single-ended Wiring
- 16-bit Resolution
- Adjustable Sampling Rate
- Storage for up to 100,000 Records from16-channel Current Input
- Built-in Resistor to Simplify Current Measurement
- 110 VDC Overvoltage Protection
- 4 kV ESD and EFT Protecton
- 2 kV Surge Protection
- Dual Watchdog
- 3000 VDC Intra-module Isolation
Introduction
The M-7017mC-16 is a 16-channel current input module that is specifically designed to measure current only. Its user-friendly design saves both time and effort when measuring current thanks to built-in resistors, meaning that you can now measure current directly without needing to add an external resistor. The module also provides 4 kV ESD protection and 110 VDC overvoltage protection for the current input, and features 3000 VDC intra-module isolation and open wire detection for 4 ~ 20 mA input. The sampling rate on the M-7017mC-16 is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017mC-16 contains a data logger that can be used to record the current input from all 16 channels, including date and time stamps, and is able to store up to 100,000 downloadable records.
Applications
Building Automation
Factory Automation
Machine Automation
Remote Maintenance
Remote Diagnosis
Testing Equipment
Specifications
Data Logger
Max. Records: Yes, up to 100,000 records from 16 current input channels
CPU Module
Real Time Clock: Yes
Watchdog Timer: Yes, Module (1.6 Seconds), Communication (Programmable)
Isolation
Intra-module Isolation: 3000 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV to Power
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
Surge (IEC 61000-4-5): ±2 kV for Power Line
LED Indicators
Status: 1 x Power and Communication
Analog Input
Channels: 16 Differential or Single-ended Wiring (Jumper Selectable)
Type: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA
Resolution: 16-bit
Accuracy: Normal Mode: ±0.1%
Fast Mode: ±0.2 %
Sampling Rate: Normal Mode: 10 Hz
Fast Mode: 200 Hz
Common Voltage Protection: 25 VDC
Overvoltage Protection: 110 VDC
Overcurrent Protection: Yes, 50 mA at 110 VDC
Individual Channel Configuration: Yes
Open Wire Detection: Yes
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C
COM Ports
Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Protocol: Modbus RTU, DCON
Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +48 VDC
Consumption: 0.6 W
Mechanical
Dimensions (mm): 121 x 76 x 42 (W x L x H)
Installation: DIN-Rail
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 95% RH, Non-condensing
