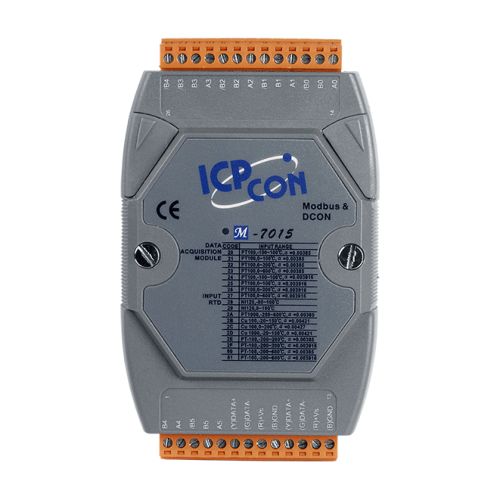

M-7015-G CR
6-ch RTD Input Module using DCON and Modbus Protocols (Gray Cover)
Analog Input
Input Channels: 6
Input Type: RTD
Wire connection: 2/3 wire
RTD Type: Pt100, Pt1000, Ni120, Cu100, Cu1000
Resolution: 16-bit
Sampling Rate: 12 samples/ second (Total)
Accuracy: +/-0.05%
-3dB BandWidth: 5.24Hz
Zero drift: +/-20uV/°C
Span drift: +/-25ppm/°C
Common Mode Rejection: Typical 86dB
Normal Mode Rejection: 100 dB
Voltage Input Impedance: >1M Ohms
Open Wire Detection: Yes
Individual Channel Configurable: Yes
4KV ESD Protection: Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic: 3000 VDC
Interface
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Power
Input: +10 to +30 Vdc
Power Consumption: 1.1W
Protocol
Support Modbus and DCON Protocol: Yes
Environment
Operating temperature: -25 to 75°C
Storage temperature: -40 to 85°C
Humidity: 5 to 95% RH, non-condensing
