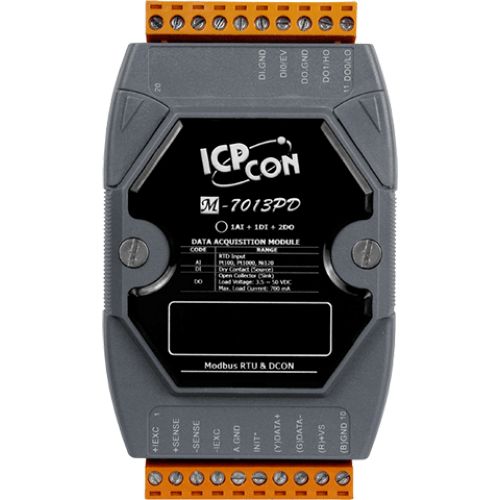

1-ch RTD Input Module with 1-ch Digital input, 2-ch Digital output, and LED Display, using DCON and Modbus Protocols (Gray Cover)

Quantity:

Price

€ 256,56

(VAT excluded)

€ 313,00(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 313,00

Availability: 15 business days

SKU: 106274

Model: M-7013PD-G CR

Need Help?


The I-7013(D) and M-7013P(D) is a 1-channel RTD Input module that is used for measuring temperatures via an RTD sensor and supports Pt100, Ni120, and Pt1000 type sensors. The module allows 2/3/4-wire RTD connections and features open wire detection. In addition, the I-7013(D) and M-7013P(D) also includes 3000 VDC intra-module isolation and supports lead resistance elimination for 3/4-wire connections. The M-7013P and M-7013PD added support for 1-channel digital input as 50 Hz event counter and 2-channel digital output as high/low alarm. The M-7013P and M-7013PD support both the Modbus RTU and DCON protocols, which can be confi gured via software.
M-7013PD-G CR: M-7013P with 7-segment LED Display (Gray Cover) (RoHS)

  • M-7013P and M-7013D
  • High/Low Alarm for Digital Output
  • 50Hz Event Counter for Digital Input
  • +/-120 VDC Overvoltage Protection
  • 1-channel RTD Input
  • Lead Resistance Elimination for 3/4-wire Connection
  • Open Wire Detection
  • 3000 VDC Intra-module Isolation
  • Dual Watchdog
  • Wide Operating Temperature Range: -25 to +75°C

RTD Input Module

Channels: 1
Wiring: 2/3/4-wire
Sensor Type: Pt100, Pt1000, Ni120
Resolution: 16-bit
Accuracy: +/- 0.05%
Sampling Rate: 10 Hz
Individual Channel Configuration: No
Overvoltage Protection: +/- 120 VDC
Oper Wire Detection: Yes
3-wire RTD Lead Resistance Elimination: Yes
Resistance Measurement: 3.2 kΩ Max.

Digital Input

Channels: 1
Sink/Source (NPN/PNP): Source, Dry Contact
On Voltage Level: Close to GND
Off Voltage Level: Open
Counter (50 Hz, 16-bit): Yes
Overvoltage Protection: +/- 30 VDC

Digital Output

Channels: 2
Type: Open Collector, MOSFET
Sink/Source (NPN/PNP): Sink
Load Voltage: 3.5 ~ 50 VDC
Max. Load Current: 700 mA/Channel
Overvoltage Protection: 60 VDC
Overload Protection: 1.4 A (with Short-circuit Protection)
Power-on Value: Yes
Safe Value: Yes

Communication

Interface: RS-485
Bias Resistor: No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.)
Format: (N, 8, 1)(N, 8, 2)(E, 8, 1)(O, 8, 1)
Baud Rate: 1200 to 115200 bps
Protocol: DCON Modbus/RTU
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicator/Display

System LED Indicator: Yes, 1 as Power/Communication Indicator
I/O LED Indicator: --
7-segment LED Display: Yes

Isolation

Intra-Module Isolation, Field-to-Logic: 3000 VDC

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal and 8 kV Air for random point
EFT (IEC 61000-4-4): ±4 kV to Power Line
Surge (IEC 61000-4-5): ±0.5 kV for Power Line

Power

Reverse Polarity Protection: Yes
Input Range:  +10 ~ +30 VDC
Consumption: 1.2 W

Mechanical

Dimensions (L x W x H): 123 mm x 72 mm x 35 mm
Installation: DIN-Rail or Wall Mounting

Environment

Operating Temp.: -25 to + 75 °C
Storage Temp.: -40 to + 85 °C
Humidity: 10 to 95% RH, non-condensing
