features and benefits

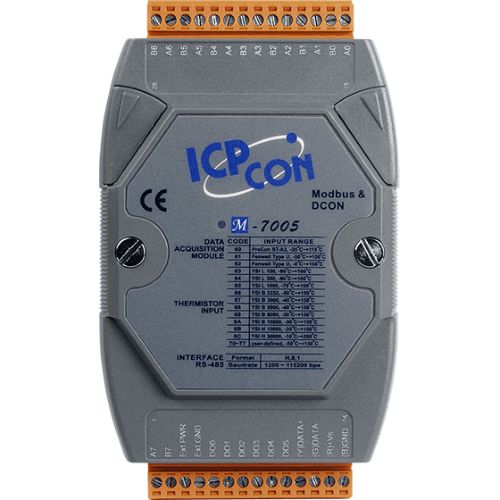

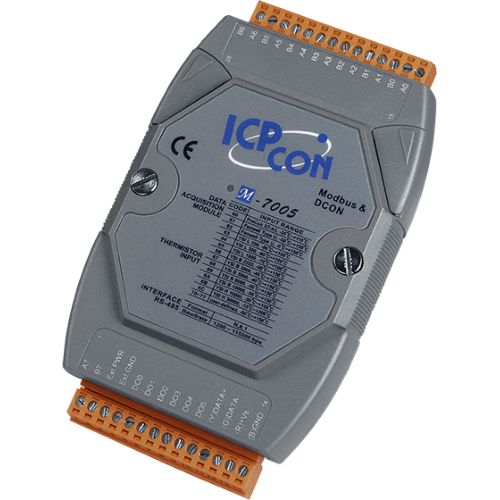

The M-7005 is used for measuring temperatures using a thermistor.
The module supports a wide range of thermistors, including support for user-defined thermistor types, which can be added by specifying the Steinhart coefficients, if necessary, and features individual channel configuration, meaning that each of the eight input channels can be individually configured for different kinds of the thermistor. In addition, The M-7005 also provides 6 digital output channels that can be used for alarm output.
The inclusion of 3000 VDC intra-module isolation and 120 VDC overvoltage protection for the thermistors on The M-7005 ensures that the module operates at a higher reliability.
The M-7005 supports Modbus RTU and DCON protocols, which can be configured via software, and all hardware specifications are the same as the I-7005.
- 8 Thermistor Inputs
- Open Wire Detection
- User-defined Thermistor Types
- Individual Channel Configuration
- 6 Digital Output Channels for Alarm Output
- Built-in Dual Watchdog
specifications
CPU Module| Watchdog Timer | Module, Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 3000 VDC |
|---|
EMS Protection| EFT (IEC 61000-4-4) | ±4 kV for Power Line |
|---|
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal |
|---|
| Surge (IEC 61000-4-5) | ±0.5 kV for Power Line |
|---|
LED Indicators| Status | 1 x Power and Communication |
|---|
Analog Input| Channels | 8 |
|---|
| Type | Thermistor |
|---|
| Sensor Type | Precon ST-A3, Fenwell U, YSI L100, YSI L300, YSI L1000, YSI B2252, YSI B3000, YSI B5000, YSI B6000, YSI B10000, YSI H10000, YSI H30000, User-defined |
|---|
| Resistance Measurement | 200 kΩ Max. |
|---|
| Resolution | 16-bit |
|---|
| Accuracy | ±0.1% of FSR |
|---|
| Sampling Rate | 8 Hz (Total) |
|---|
| Overvoltage Protection | 120 VDC |
|---|
| Individual Channel Configuration | Yes |
|---|
| Open Wire Detection | Yes |
|---|
Digital Output| Channels | 6 |
|---|
| Type | Open Collector |
|---|
| Sink/Source (NPN/PNP) | Sink |
|---|
| Load Voltage | +3.5 ~ +50 VDC |
|---|
| Load Current | 650 mA/Channel |
|---|
| Overvoltage Protection | 60 VDC |
|---|
| Overload Protection | 1.4 A |
|---|
| Short-circuit Protection | Yes |
|---|
| Power on Value | Programmable |
|---|
| Safe Value | Programmable |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
|---|
| Protocol | Modbus RTU, DCON |
|---|
Power| Reverse Polarity Protection | Yes |
|---|
| Input Range | +10 ~ +30 VDC |
|---|
| Consumption | 1.3 W |
|---|
Mechanical| Dimensions (mm) | 72 x 123 x 35 (W x L x H) |
|---|
| Installation | DIN-Rail Mounting |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
