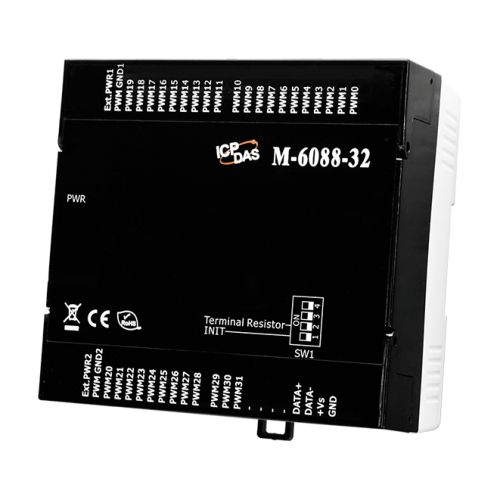

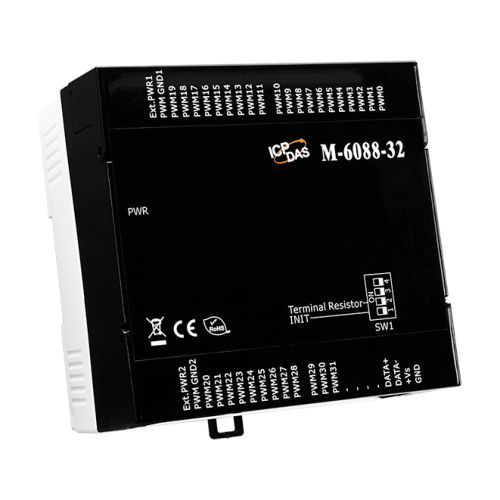

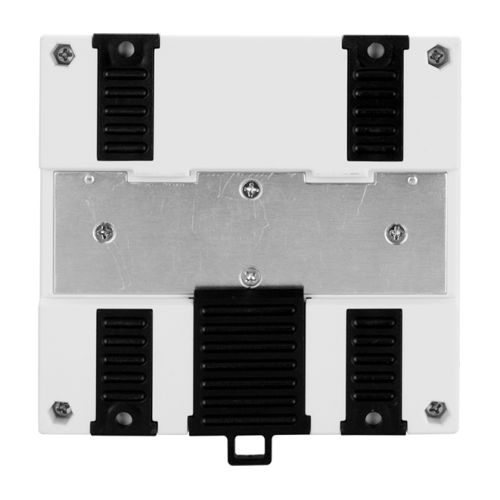

M-6088-32 CR ICP DAS DCON Modbus



The M-6088-32 provides 32-channel PWM (Pulse Width Modulation) Output, and can be used to develop powerful and cost-effective analog control systems. PWM is a powerful technique for controlling analog circuits that uses the Digital Output to generate a waveform with a variable duty cycle and frequency which can then be used to control an analog circuit in applications such as controlling the position or speed of motors, the brightness of lamps, or the speed of fans, etc. Either burst mode or continuous mode can be used for the PWM output depending on the application. When required, communication with the M-6088-32 can be programmed based on the Modbus RTU and the DCON protocol, with the added benefit that different addresses can be configured via hardware to allow for Modbus RTU communication.





Watchdog Timer: Yes, Module (1.6 seconds), Communication (Programmable)



Intra-module Isolation: 2500 VDC

EMS Protection:

EFT (IEC 61000-4-4): ±4 kV to Power

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

Surge (IEC 61000-4-5): ±2 kV



Status: 1 x Power and Communication



Channels: 32

Type: Open Collector

Sink/Source (NPN/PNP): Sink

Load Voltage: +5 ~ +40 VDC

Load Current: +40 VDC@200 mA/Channel

Frequency: 50 Hz

Duty Cycle: 0.1 to 99.9 %

Mode: Burst, Continuous

Burst Count: 1 to 65535

Power-on Value: Yes

Safe Value: Yes



Ports: 1 x RS-485

Baud Rate: 1200 to 115200 bps

Data Format: (N, 8, 1), (N, 8, 2), (E, 8, 1), (O, 8, 1)

Protocol: Modbus RTU, DCON



Reverse Polarity Protection: Yes

Input Range: +10 ~ +48 VDC

Consumption: 1.0 W Max.



Dimensions (mm): 116 x 120 x 64 (W x L x H)



Operating Temperature: -25 ~ +75 °C

Storage Temperature: -40 ~ +80 °C

Humidity: 10 ~ 95% RH, Non-condensing
