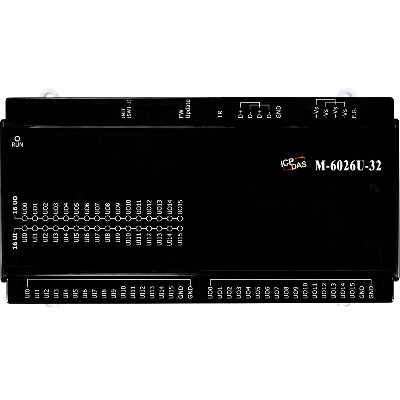

M-6026U-32 CR ICP DAS Analog IO Modules

• Universal Inputs and Universal Outputs
• Status LED for Universal inputs and outputs
• Integrated Design Allows You to Take Advantage of Inputs and Outputs
• Any Universal I/O point can be configured as analog input/output, digital input or counter input
• 100 VDC Over Voltage Protection for Universal Inputs
• Open Wire Detection for +4 to +20 mA Outputs
• Support Modbus RTU Protocol
• Easy Mounting and Connection
• Space Saving Design
• Wide Operating Temperature Range: -25°C to +75°C

INTRODUCTION

The M-6026U-32 of distributed I/O provides a wide variety of input, output, and smart control solutions, all of which are based on a single universal hardware platform. The M-6026U-32 combines inputs and outputs, saving your time and space when both are at a premium. Since M-6032U-32 feature both inputs and outputs on the same board, retailers can reduce the space requirement for I/O boards by as much as 50%! Traditional I/O board schemes required retail operators to mount separate input and output boards within an enclosure, increasing the time and cost to mount the boards. The M-6000 I/O boards are communications devices needed to connect to the facility management system to control refrigeration, HVAC and lighting systems.

APPLICATIONS

• Heating system in buildings
• Ventilation system
• Air-conditioning system
• HVAC control, lighting control, door monitoring

I/O SPECIFICATIONS

Universal Input
Channels: 16
Type: 0 ~ 2.5V, 0 ~ 5 V, 0 ~ 10 V, 0 to 20 mA, 4 to 20 mA, Pt1000, Dry Contact Digital Input
Resolution: 16-bit
Accuracy: ±0.1% of FSR
Digital Input: On Level: Close to GND
       Off Level: OPEN

Over Voltage Protection: 100 VDC

Universal Output
Channels: 16
Type: 0 to 20 mA, 4 to 20 mA, 0 to 10 V
Resolution: 12-bit
Accuracy: ±0.2% of FSR
Voltage Output Capability: 10 V@ 20mA
Open Wire Detection for Current Output: Yes, Only 4 to 20 mA

SYSTEM SPECIFICATIONS

RS-485
Interface: RS-485 x 1
Format: N, 8, 1
Baud Rate: 1200 to 115200 bps
Protocol: Modbus/RTU
Dual Watchdog: Yes, Module (2.3 seconds), Communication (Programmable)

EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

 ±8 kV Air for Random Point

Power Requirements
Power from Terminal Block: 24 VAC or 24 VDC
Fuse Protection: 1 A
Power Consumption: 14 W Max.

Mechanical
Dimensions (W x L x H): 240 mm x 135 mm x 65 mm

Environment
Operating Temperature: -25°C to +75°C
Storage Temperature: -40 to +80°C
Relative Humidity: 10 ~ 95% RH, Non-condensing
