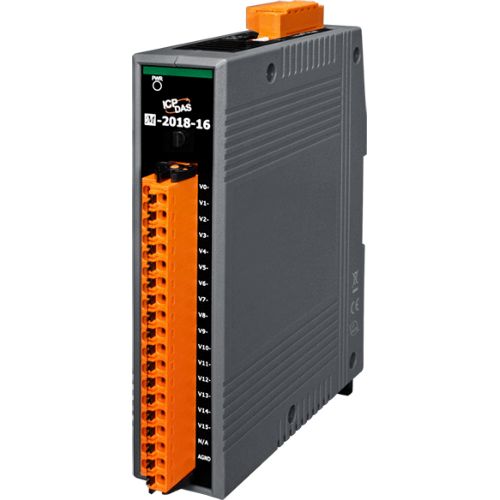

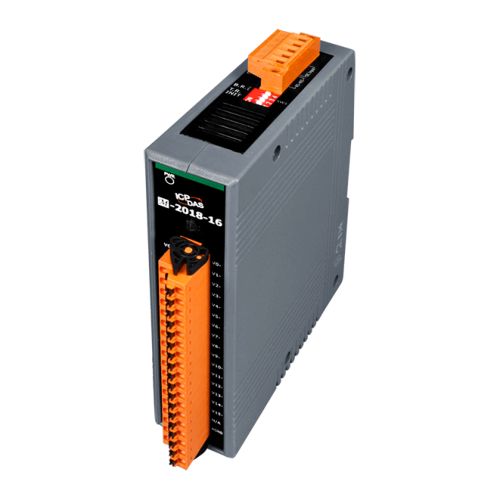

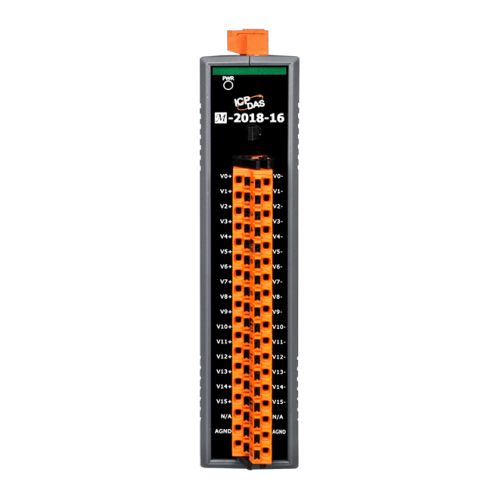

M-2018-16 CR ICP DAS DCON Modbus

• 16-channel Differential Analog Input
• ±120 VDC Overvoltage Protection
• Current, Voltage or Thermocouple Input
• 3000 VDC Intra-module Isolation
• Adjustable CJC offset
• Open Thermocouple Detection
• Dual Watchdog
• Wide Operating Temperature Range: -25°C to +75°C

INTRODUCTION

The M-2018-16 is an analog input module that includes 16 differential analog input channels. The voltage input range can be from ±15 mV to ±2.5 V, the current input range can be either +4 to +20 mA, 0 to +20 mA, or ±20 mA, and types J, K, T, E, R, S, B, N, C, L, M, LDIN43710 thermocouple can be used for the thermocouple input. Overvoltage protection of up to 120 VDC is provided. The module also features per-channel open wire detection for the thermocouple input types, and provides 4 kV ESD protection as well as 3000 VDC intra-module isolation.

APPLICATIONS

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

I/O SPECIFICATIONS

Analog Input
Channels: 16
Wiring: Differential
Sensor Types: Thermocouple: J, K, T, E, R, S, B, N, C
       Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
       Current: ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (requires an optional external 125 Ω resistor)

Resolution: 16-bit
Accuracy: 0.1% of FSR
Sampling Rate: 10 Hz (Total)
Input Impedance: > 400 kΩ
Common Voltage Protection: 25 VDC
Individual Channel Configuration: -
Overvoltage Protection: 120 VDC
Open Wire Detection (for thermocouple only): Yes
Temperature Outputs Consistency: -
Stable Temperature Output in the Field: -

SYSTEM SPECIFICATIONS

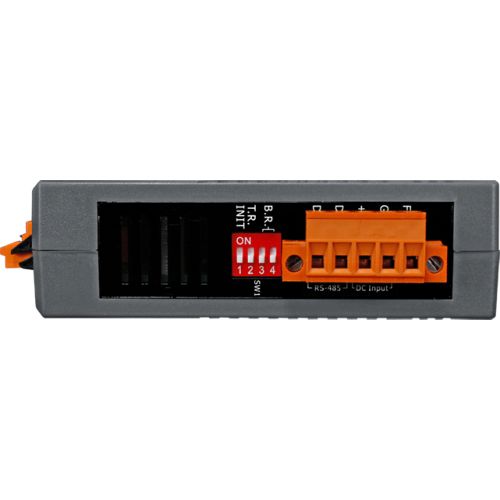

Communication Interface
Interface: RS-485
Bias Resistor: Switch Selectable (10 kΩ resistor)
Format: (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1)
Baud Rate: 1200 to 115200 bps
Protocol: Modbus RTU, DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)

LED Indicators/Display
System LED Indicator: Yes, 1 as Power/Communication Indicator
I/O LED Indicators: -
7-segment LED Display: -

Isolation
Intra-module Isolated, Field-to-Logic: 3000 VDC

EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal

 ±8 kV Air for Random Point

EFT (IEC 61000-4-4): ±4 kV for Power Line
Surge (IEC 61000-4-5): ±1 kV for Power Line

Power
Reverse Polarity Protection: Yes
Input Range: +10 ~ +48 VDC
Consumption: 0.5 W

Mechanical
Dimensions (W x L x H): 132 mm x 157 mm x 31 mm
Installation: DIN-Rail or Wall Mounting

Environment
Operating Temperature: -25 to +75°C
Storage Temperature: -40 to +85°C
Humidity: 10 to 95% RH, Non-condensing
