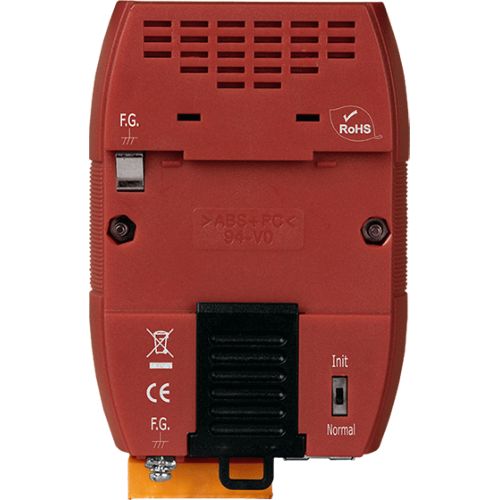

M2M-710D CR
Remote Maintenance Ethernet Device Terminal Unit with RS-232 and RS-485 Ports
The M2M-710D module is specially designed for the remote maintenance and upgrading the serial to network application solution. It is suitable for the harsh industrial field. M2M-710D provides 2 major technologies on networking. The Pair connection provides TCP data tunneling between 2 serial devices. Therefore, by means of TCP/IP server/client infrastructure, M2M-710D can provide the remote serial data transmission by Ethernet between local and remote sides. This solution can transfer the site condition of equipment accurately. The maintenance engineer can directly check and diagnose the device/PLC like on-site. This can reduce the huge maintenance cost to increase the competition of enterprises.
Except for the functionality above, M2M-710D can also be accommodatingly in other equipment (M-4132, M2M-420-AV…).
M2M-710D also integrates the Virtual com technology. That can resolve the insufficiency of real com port in PC. By applying this technology, the maintenance man can take the remote maintenance or monitor whenever the time is and whatever the place is.(V13 or latter)
Provide pair connection (RS-232,RS-485) on network
Support Server and Client communication mode
Support VxComm function in server mode(V13 or latter)
Be applied with other M2M products (M-4132, M2M-720-A
Support RS-232 or RS-485 serial communication ports
Built-in self-tuner ASIC chip for RS-485 port
Web-based administration
Built-in MiniOS7 OS to keep off the computer virus
Ethernet Protocol: TCP, UDP, IP, ICMP, ARP, RARP
Provide dynamic DNS function
Supply static IP/DHCP
Supply DDNS(Dynamic DNS)
Quick start
5-Digit 7 Segment LED Display
EMI, RoHS compliance
CPU 80186, 80 MHz
SRAM 512 KB
Flash Memory Flash ROM: 512 KB ; Erase unit is one sector (64 KB) - 100,000 erase/write cycles
EEPROM 16 KB - Data retention: 40 years; 1,000,000 erase/write cycles.
Built-in Watchdog Timer Yes
Communication Interface
COM1 RS-232(RxD, TxD,RTS,CTS,DTR,DSR,GND); None-isolation
COM2 RS-485(DATA+, DATA-); None-isolation
Ethernet Port 10/100 Base-TX
COM Port Formats
Data Bit 7, 8: for COM1 and COM2
Parity None, Even, Odd, Mark, Space
Stop Bit 1: for COM1, COM2
Baud Rate 115200 bps Max.
Mounting
Din Rail Mount Yes
Wall Mount Yes
LED Display
5-Digit 7 Segment LED Display Yes(for D Version)
System LED Indicator Yes
Mechanism
Flammability Fire Retardant Materials (UL94-V0 Level)
Dimension ( W x L x H ) 123 mm x 72 mm x 33 mm
Operating Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Power
Protection Power Reverse Polarity Protection
Required Supply Voltage 10 ~ 30 VDC (non-regulated)
Power Consumption 2.7 W for M2M-710D
