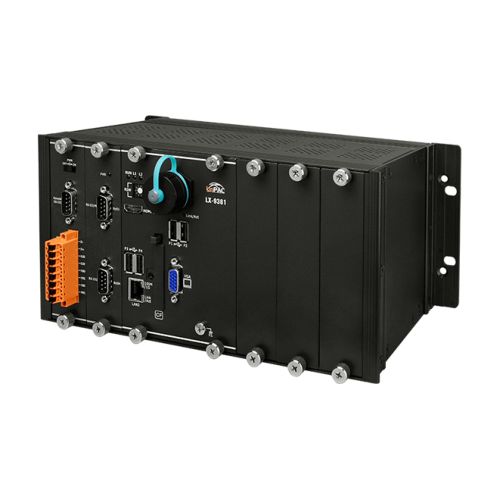

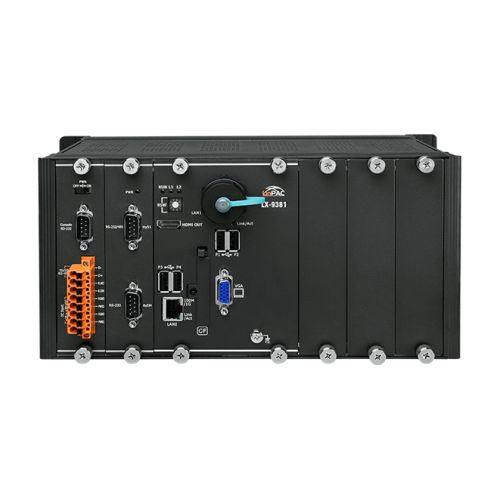

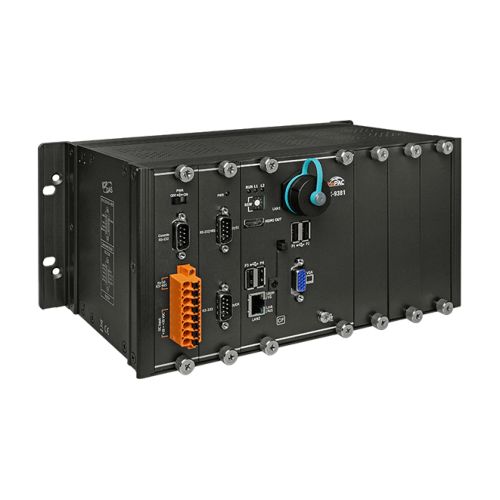

LX-9381 CR ICP DAS Linux Based


LX-9381 CR

3-slot Linux Based PAC with E3845 CPU. Metal Case



€ 1.992,24

(VAT excluded)

€ 2.430,53(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 2.430,53

Availability: 15 business days

SKU: 119072

Model: LX-9381 CR

Need Help?


  • E3845 (1.91 GHz) CPU
  • Linux kernel 4.14.12 Inside
  • Supports VGA and HDMI dual display
  • Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
  • 64-bit Hardware Serial Number for Software Protection
  • Rich I/O Expansion Ability (RS-232, RS-485)
  • 2 10/100/1000M Ethernet Ports
  • Redundant Power Input


The LX-9x8x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-9K and I-97K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. User's programs can be saved in external storage device, such as CF Card or USB mass storage device.
LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.



OS: Linux kernel 4.14.12
Service: SFTP server, Web server, SSH
SDK: LinPAC SDK (GCC based toolchain and LinPAC Libraries)

Main Unit

CPU: E3845 (1.91 GHz, quad core)
64-bit Hardware Serial Number: Yes, for Software Copy Protection
System Memory: 4 GB DDR3 SDRAM
• Flash: mSATA slot with one 32 GB SSD
• CF socket with one 16 GB CF card (support up to 32 GB)
Non-Volatile Memory:
• MRAM 512 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Real Time Clock: Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer: Yes, Dual Watchdog Timer


Signal: VGA (Analog RGB), HDMI
Resolution: 1280 × 1024 to 1920 × 1080 for 16:9 display
640 × 480 to 1024 × 768 for 4:3 display

LED Indicators

Status: 2 x Power
1 x Run (Programmable)
2 x Programmable

I/O Expansion

I/O Type: I-9K, I-97K series
Slots: 3

COM Ports

Ports: 1 x RS-232 (3000 VDC, Isolated)
1 x RS-485 (3000 VDC, Isolated)
1 x RS-232/485 (Console, 3000 VDC, Isolated)
1 x RS-232/485 (3000 VDC, Isolated)


Rotary Switch: Yes (0 ~ 9)


Ports: 2 x RJ-45, 10/100/1000 Base-TX


Ports: 4
Specification: USB 2.0 (Host)


Input Range: +10 VDC ~ +30 VDC (1 kV Isolated)
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption: 18.7 W (0.78 A @ 24 VDC)


Dimensions (mm): 300 x 133 x 164 (W x L x H)
Installation: DIN-Rail or Wall Mounting


Operating Temperature: -25 ~ +60 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 95% RH, Non-condensing
