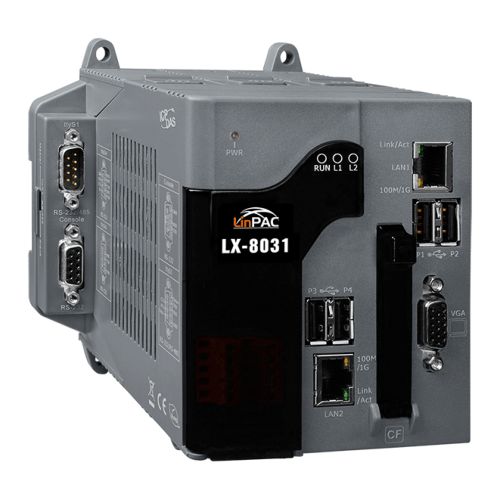

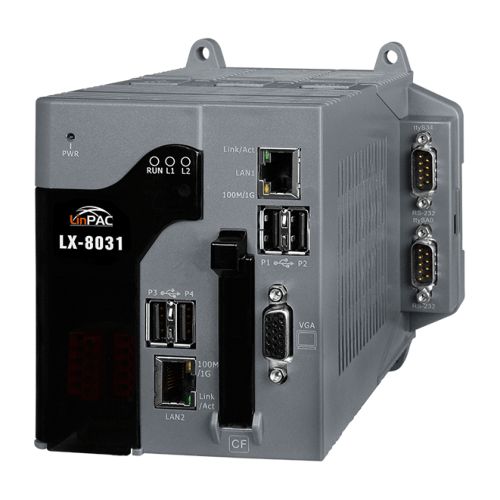

LX-8031 CR ICP DAS Linux Based

LX-8031 CR ICP DAS

LX-8031 CR

0-slot Linux Based PAC with x86 CPU

Quantity:

Price

€ 1.394,12

(VAT excluded)

€ 1.700,83(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.700,83

Availability: 15 business days

SKU: 119033

Model: LX-8031 CR

Need Help?


 Features

• x86 dual-core (1.0 GHz) CPU
• Linux kernel 3.2 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number for Software Protection
• Rich I/O Expansion Ability (RS-232, RS-485, FRnet)
• 2 10/100/1000M Ethernet Ports
• Redundant Power Input


Introduction

The LX-8x3x are Linux based PACs that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an x86 dual-core CPU, 0/1/3/7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interface. Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansions are available to use our Ethernet I/O modules and RS-485 I/O modules. User's programs can be saved in external storage device, such as CF Card or USB mass storage device.

LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/8000/87k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly.


Specifications

Software

OS: Linux kernel 3.2
Service: SFTP server, Web server, SSH
SDK: LinPAC SDK (GCC based toolchain and LinPAC Libraries)


Main Unit

CPU: x86 dual-core (1.0 GHz)
64-bit Hardware Serial Number: Yes, for Software Copy Protection
System Memory: 2 GB DDR3 SDRAM
Storage: • Flash: mSATA slot with one 32 GB SSD
• CF socket with one 16 GB CF card (support up to 32 GB)
Non-Volatile Memory: • MRAM 512 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Real Time Clock: Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer: Yes, Dual Watchdog Timer


Display

Signal: VGA (Analog RGB)
Resolution: 1280 × 1024 to 1920 × 1080 for 16:9 display
640 × 480 to 1024 × 768 for 4:3 display


LED Indicators

Status: 1 x Power
1 x Run (Programmable)
2 x Programmable


I/O Expansion

Slots: 0


COM Ports

Ports: 1 x RS-232 (Non-isolated)
1 x RS-232 (Console, 3000 VDC, Isolated)
1 x RS-232 (3000 VDC, Isolated)
1 x RS-485 (3000 VDC, Isolated)
1 x RS-232/485 (3000 VDC, Isolated)


HMI

Rotary Switch: Yes (0 ~ 9)
DIP Switch: No
Power Switch: Yes


Ethernet

Ports: 2 x RJ-45, 10/100/1000 Base-TX


USB

Ports: 4
Specification: USB 2.0 (Host)


Power

Input Range: +10 VDC ~ +30 VDC (1 kV Isolated)
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption: 12 W (0.5 A @ 24 VDC)


Mechanical

Dimensions (mm): 137 x 132 x 125 (W x L x H)
Installation: DIN-Rail or Wall Mounting


Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 95% RH, Non-condensing
