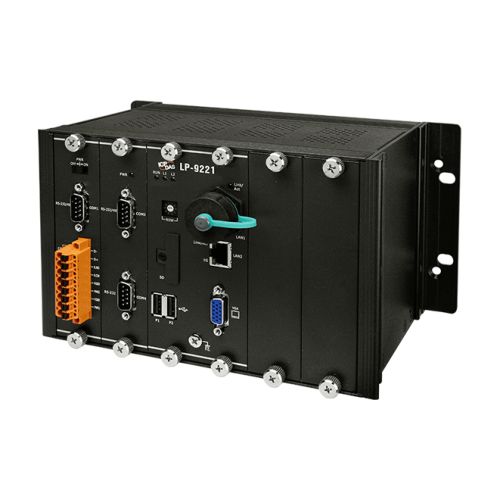

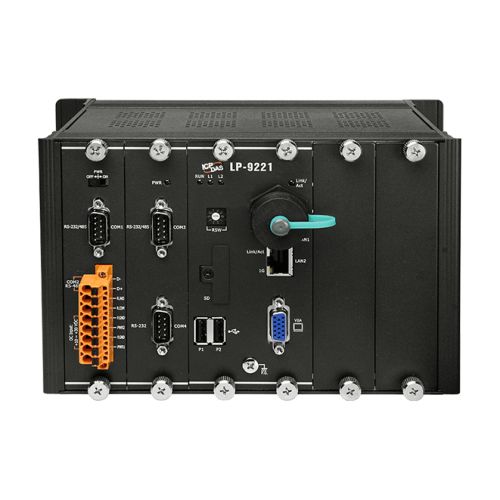

LP-9221 CR ICP DAS Linux Based


LP-9221 CR

2-slot Linux Based PAC with Cortex-A8 CPU. Metal Case



€ 1.202,27

(VAT excluded)

€ 1.466,77(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.466,77

Availability: 15 business days

SKU: 119009

Model: LP-9221 CR

Need Help?


  • Cortex-A8 (1.0 GHz) CPU
  • Linux kernel 3.2.14 Inside
  • Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
  • 64-bit Hardware Serial Number
  • Rich I/O Expansion Ability: RS-232, RS-485, USB, FRnet, CAN
  • 2 10/100/1000M Ethernet Ports
  • 4 Serial Ports (RS-232/485)
  • Redundant Power Inputs


The LP-9x2x is the new generation Linux based PAC (Programmable Automation Controller) of ICP DAS. Each LP-9x2x is equipped with a Cortex-A8 (1.0 GHz) CPU running a Linux operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 2 expansion I/O slots that can be used to integrate high performance I-9K (parallel-type) and I-97K (serial-type) series I/O modules. User's programs can be saved in external storage device, such as SD Card or USB mass storage device.
LinPAC SDK is provided for users to develop LinPAC I/O applications rapidly and easily when I-7000/9000/97k series I/O modules are used in the LinPAC. Users can develop LinPAC applications by using GNU C Language. In the meanwhile, all kinds of servers and functions built-in make the LinPAC more powerful and users will be able to operate LinPAC to achieve their own project smoothly



OS: Linux Kernel 3.2.14
Service: FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK: LinPAC SDK (GCC based toolchain and LinPAC Libraries)

Main Unit

CPU: Cortex-A8, 1 GHz
64-bit Hardware Serial Number: Yes, for Software Copy Protection
System Memory: 512 MB DDR3 SDRAM
• Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory:
• MRAM 128 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Real Time Clock: Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer: Yes, Dual Watchdog Timer


Signal: VGA (Analog RGB)
Resolution: Up to 1280 x 1024

LED Indicators

Status: 1 x Power
1 x Run
2 x Programmable
I/O Expansion
I/O Type: I-9K, I-97K series
Slots: 2

COM Ports

Ports: 1 x RS-232 (3000 VDC, Isolated)
1 x RS-485 (3000 VDC, Isolated)
1 x RS-232/485 (Console, 3000 VDC, Isolated)
1 x RS-232/485 (3000 VDC, Isolated)


Rotary Switch: Yes (0 ~ 9)


Ports: 2 x RJ-45, 10/100/1000 Base-TX


Ports: 2
Specification: USB 2.0 (Host)


Input Range: +10 VDC ~ +30 VDC (1 kV Isolated)
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption: 10.8 W (0.45 A @ 24 VDC)


Dimensions (mm): 239 x 133 x 164 (W x L x H)
Installation: DIN-Rail or Wall Mounting


Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 95% RH, Non-condensing
