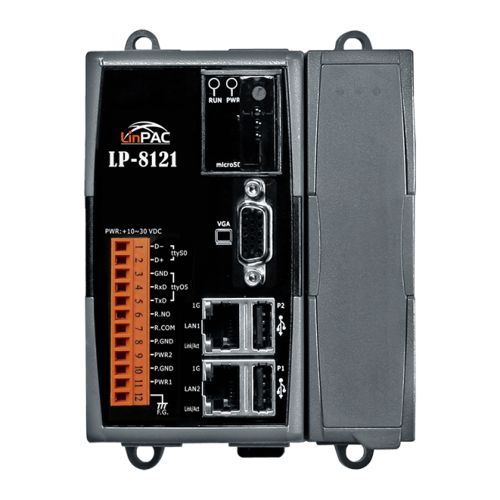

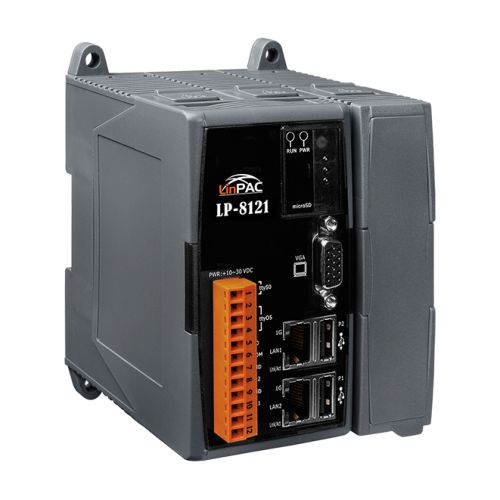

LP-8121 CR ICP DAS Linux Based

LP-8121 CR ICP DAS

LP-8121 CR

1-slot Linux Based PAC with Cortex-A8 CPU

Quantity:

Price

€ 774,94

(VAT excluded)

€ 945,43(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 945,43

Availability: 15 business days

SKU: 118935

Model: LP-8121 CR

Need Help?


 Features

  • Cortex-A8 (1.0 GHz) CPU
  • Linux kernel 3.2.14 Inside
  • Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
  • 64-bit Hardware Serial Number
  • Rich I/O Expansion Ability: RS-232, RS-485, USB, FRnet, CAN
  • Redundant Power Inputs


Introduction

The LP-8x2x is the new generation Linux-based PAC (Programmable Automation Controller) from ICP DAS and is equipped with a Cortex-A8 CPU (1.0 GHz) running a Linux kernel 3.x operation system, multiple communication interfaces (VGA, USB, Ethernet and RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial I/O modules (high profile I-87K series).

Main advantage of the LinPAC-8x2x is its high quality control system, including its stably properties, open source and the standard LinPAC SDK for Windows and Linux using the GNU C language, JAVA and GUI software. The main purpose of LinPAC-8x2x is to allow the numerous enthusiastic Linux users to control their own embedded system easily within the Linux environment.


Specifications

Software

OS: Linux Kernel 3.2.14
Service: Web Server, FTP Server, Telnet Server, SSH Server
SDK: Standard LinPAC SDK for Windows and Linux by GNU C language


Main Unit

CPU: Cortex-A8, 1 GHz
64-bit Hardware Serial Number: Yes, for Software Copy Protection
System Memory: 512 MB DDR3 SDRAM
Storage:
• Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card)

Non-Volatile Memory:
• MRAM 128 KB
• EEPROM 16 KB (Data Retention: 40 years; 1,000,000 erase/write cycles)
Real Time Clock: Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer: Yes, Dual Watchdog Timer


Display

Signal: VGA (Analog RGB)
Resolution: Up to 1280 x 1024


LED Indicators

Status: 1 x Power
1 x Run (Programmable)


I/O Expansion

I/O Type: I-8KW, I-87KW series
Slots: 1


COM Ports

Ports: 1 x RS-232 (Console, Non-isolated)
1 x RS-485 (3000 VDC, Isolated)


HMI

Rotary Switch: Yes (0 ~ 9)
DIP Switch: No


Ethernet

Ports: 2 x RJ-45, 10/100/1000 Base-TX


USB

Ports: 2
Specification: USB 2.0 (Host)


Power

Input Range: +10 VDC ~ +30 VDC
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption: 7.3 W (0.3 A @ 24 VDC)


Mechanical

Dimensions (mm): 95 x 132 x 111 (W x L x H)
Installation: DIN-Rail or Wall Mounting


Environment

Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 95% RH, Non-condensing
