LP-5231PM-4GE CR ICP DAS Linux Based

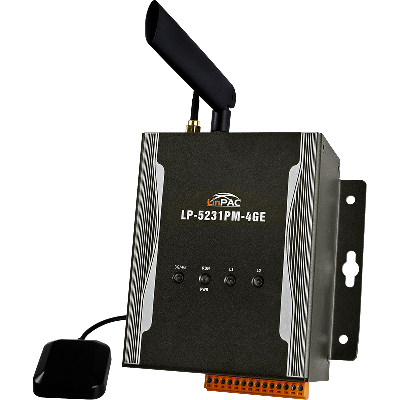

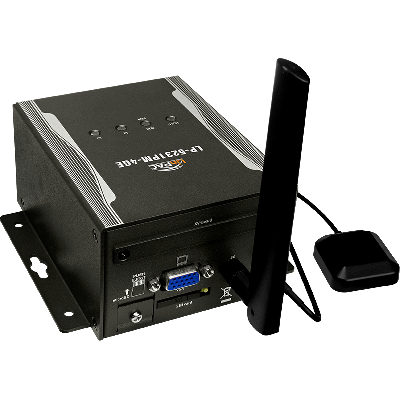

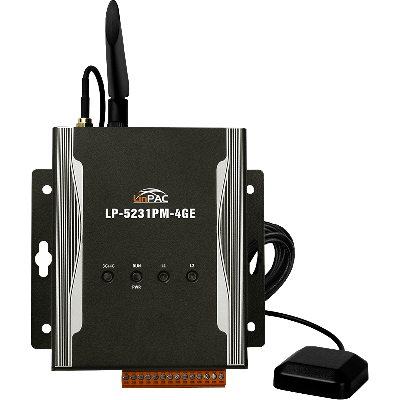

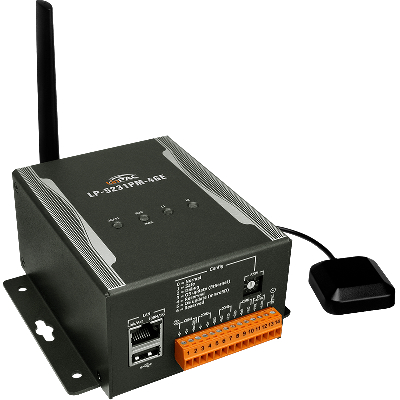

LP-5231PM-4GE CR

4G Linux Based Metal PAC with Cortex-A8 CPU, 1 LAN Port, GPS. Metal Case



€ 826,09

(VAT excluded)

€ 1.007,83(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 1.007,83

Availability: 15 business days

SKU: 110825

Model: LP-5231PM-4GE CR

Need Help?

  • Linux kernel 3.2.14 Inside
  • Cortex-A8 (1.0 GHz)
  • Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
  • 64-bit Hardware Serial Number
  • I/O Expansion Bus: XV-Board
  • Redundant Power Inputs
  • Operating Temperature: -25 ~ +75 °C
  • Industrial Tri-band 4G module
  • 4G Modem


The LP-5231PM-4GE/LP-5231PM-4GC is equipped a Cortex-A8 CPU (1 GHz) and using Linux OS with Linux Kernel 3.2.14 that is a compact and real-time OS used to quickly create time critical and high performance applications.
The 4G module of LP-5231PM-4GC work on frequencies of WCDMA 900/2100 MHz, TD-SCDMA 1900/2100 MHz, CDMA2000 (BC0) 800 MHz, FDD LTE:B1/B3/B8, TDD LTE: B38/B39/B40/B41 and GSM 850/900/1800/1900 MHz. The 4G module of LP-5231PM-4GE work on frequencies of WCDMA 2100/900/850 MHz, FDD LTE:B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 3G/4G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS/3G/4G connection applications with our PAC.


System Software
OS: Linux Kernel 3.2.14
Embedded Service: SFTP server, Web server, SSH
SDK Provided: LinPAC SDK (GCC based toolchain and LinPAC Libraries)
CPU Module
CPU: Cortex-A8, 1GHz
Flash: 512 MB
Expansion Flash Memory: microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timer: Yes
LED indicator: 1 LED for Power and Running; 2 LED for user defined
Rotary Switch: Yes (0 ~ 9)
VGA & Communication Ports
VGA and Communication Ports: VGA x 1 (max. resolution up to 1280 x 1024)
Ethernet: RJ-45 x 1, 10/100/1000 Based-TX ( Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 1
Console Port: RS-232 (RxD, TxD and GND); Non-isolated
ttyO2: RS-485 (Data+, Data-); Non-isolated
ttyO4: RS-232 (RxD, TxD and GND); Non-isolated
ttyO5: RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus: Yes, one optional XV-board
Casing: Metal
Dimensions (W x L x H): 117 mm x 126 mm x 58 mm
Installation: DIN-Rail Mounting/Wall Mounting
Operating Temperature: -25 to +75°C
Storage Temperature: -30 to +80°C
Ambient Relative Humidity: 10 to 90% RH (non-condensing)
Input Range: +12 VDC to +48 VDC
Consumption: 6.5 W
GSM System
Frequency Band: GSM: 850/900/1800/1900 MHz
GPRS Connectivity: GPRS class 12/10; GPRS station class B
Data GPRS: Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8k bps
3G System
Frequency Band (MHz): WCDMA 850/900/2100
Data Transmission:     DC-HSPA+ Download: Max. 42 Mbps; Upload: Max 5.76Mbps

TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max 2.2Mbps

CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max 5.4Mbps
4G System
Frequency Band (MHz): FDD LTE: B1/B3/B5/B7/B8/B20
Data Transmission: Download Max 100Mbps/Upload Max 50Mbps
GPS System (option)
Support Channels: 32
Protocol Support: NMEA 0183
