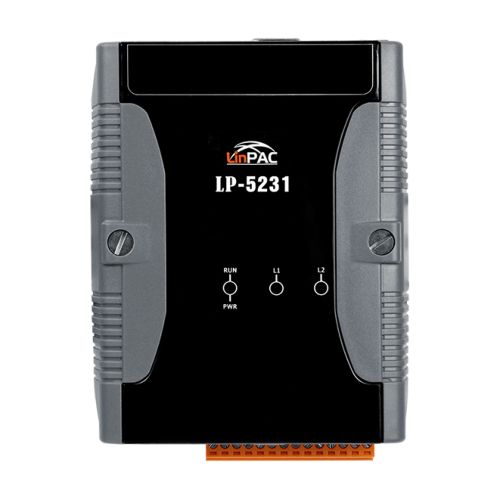

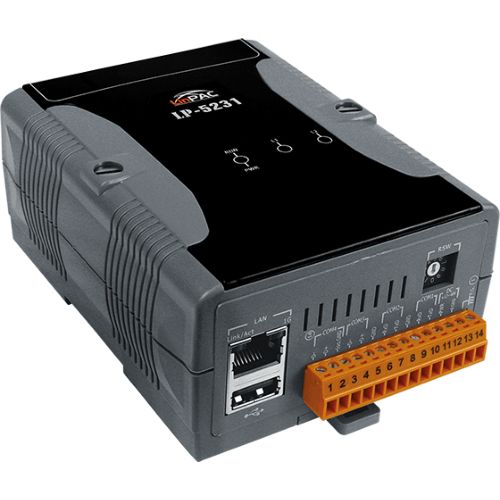

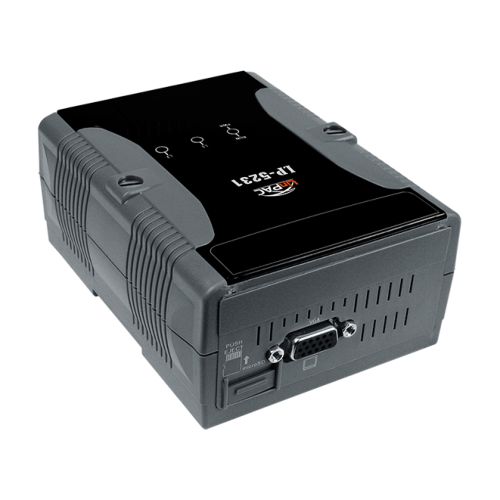

LP-5231 CR
Linux Based PAC with Cortex-A8 CPU 1 LAN Port
The LP-5231 series is equipped a AM3352 CPU (720 MHz) and using Linux operating system(Linux Kernel 3.2.14). Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications. Main advantage of the LP-5231 is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server)
LP-5231 CR: PAC with Linux OS and one LAN port (RoHS)
- AM3354, 1 GHz CPU
- 512 MB RAM and 512 MB Flash
- Linux Kernerl 3.2.14
- Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Bus (XV-Board)
- 10/100/1000 Mbit/s Ethernet Port
- 4 Serial Ports (RS-232/485)
- Operating Temperature: -25 ~ +75°C
System Software
OS: Linux Kernel 3.2.14
Embedded Service: SFTP server, Web Server, SSH
SDK Provided: LinPAC SDK (GCC based toolchain and LinPAC Libraries)
CPU Module
CPU: AM3354, 1 GHz
DDR3 SDRAM: 512 MB
Flash: 512 MB
EEPROM: 64 KB
Expansion Flash Memory: microSD socket with one 4 GB microSD card (support up to 32 GB microSDHC card)
RTC (real time clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Dual Watchdog Timer: Yes
LED Indicator: 4 LEDs (Power, Running and 2 user defined LEDs)
Rotary Switch: Yes ( 0 ~ 9)
VGA & Communication Ports
VGA and Communication Ports: Yes. Resolution: 640 x 480; 800 x 600; 1024 x 768; 1280 x 720
Ethernet: 10/100/1000 Based-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0 (host): 1
Console Port: RS-232 (RxD, TxD and GND); non-isolated
ttyO2: RS-485 (Data+, Data-); non-isolated
ttyO4: RS-232 (RxD, TxD and GND); non-isolated
ttyO5: RS-485 (Data+, Data-); 2500 VDC isolated
I/O Expansion Slots
I/O Expansion Bus: Yes, one optional XV-board
Mechanical
Dimensions (W x L x H): 91 mm x 132 mm x 52 mm
Installation: DIN-Rail Mounting
Environmental
Operating Temp.: -25°C ~ +75°C
Storage Temp.: -30°C ~ +80°C
Ambient Relative Humidity: 10 ~ 90% RH (non-condensing)
Power
Input Range: +12 VDC ~ +48 VDC
Consumption: 4.8 W
