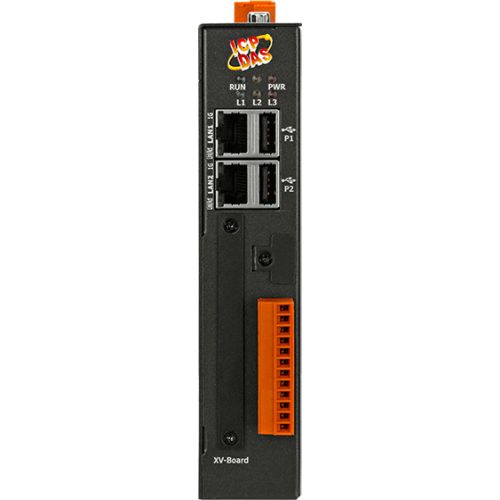

LP-2241M CR, Linux Based PAC with Cortex-A8 CPU and 2 LAN Ports. Metal Case
LP-2241M CR
Linux Based PAC with Cortex-A8 CPU and 2 LAN Ports. Metal Case
Free Shipping
Features
- Cortex-A8 (1.0 GHz) CPU
- 512 MB RAM and 512 MB Flash
- Linux kernel 3.2.14 Inside
- Real-Time Capability
- 64-bit Hardware Serial Number for Software Protection
- I/O Expansion Bus (XV-Board)
- 10/100/1000M Dual Ethernet Port
- 4 Serial Ports (RS-232/485)
Introduction
The LP-2241M is equipped with a Cortex-A8 CPU (1 GHz) running a Linux operating system (Linux Kernel 3.2.14), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools. Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications.
Main advantage of the LP-2241M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).
Specifications
Software
OS: Linux Kernel 3.2.14
Service: SFTP server, Web server, SSH
SDK: LinPAC SDK (GCC based toolchain and LinPAC Libraries)
Main Unit
CPU: Cortex-A8, 1 GHz
64-bit Hardware Serial Number: Yes, for Software Copy Protection
System Memory: 512 MB DDR3 SDRAM
Storage: • Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory: FRAM 64 KB
Real Time Clock: Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer: Yes, Dual Watchdog Timer
Display
Signal: VGA (Analog RGB)
Resolution: Up to 1280 x 1024
LED Indicators
Status: 1 x Power
1 x Run
3 x Programmable
I/O Expansion:
I/O Type: XV-board
COM Ports
Ports: 1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
1 x RS-485, Non-isolated
1 x RS-485 (2500 VDC, Isolated)
HMI
Rotary Switch: Yes (0 ~ 9)
Ethernet
Ports: 2 x RJ-45, 10/100/1000 Base-TX
USB
Ports: 2
Specification: USB 2.0 (Host)
Power
Input Range: +12 VDC ~ +48 VDC
Consumption: 4.8 W
Mechanical
Casing: Metal
Dimensions (mm): 35 x 167 x 119 (W x L x H)

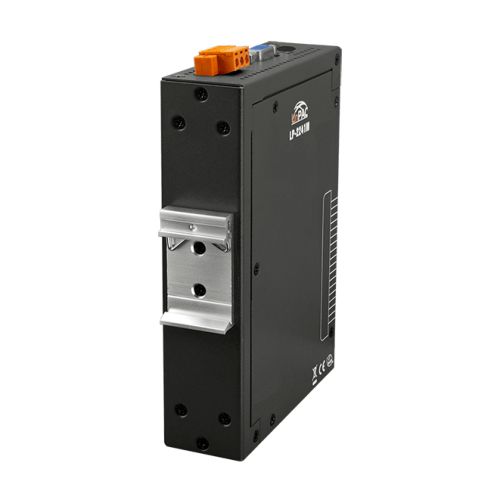

Installation: DIN-Rail or Wall Mounting (optional)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +80 °C
Humidity: 10 ~ 95% RH, Non-condensing
