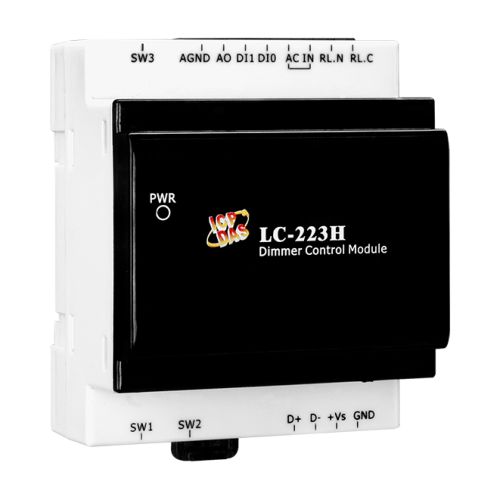

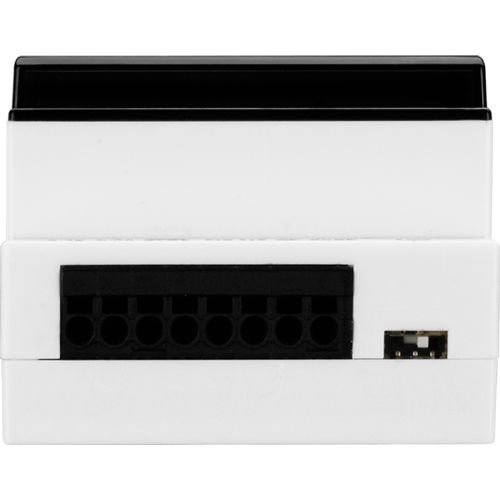

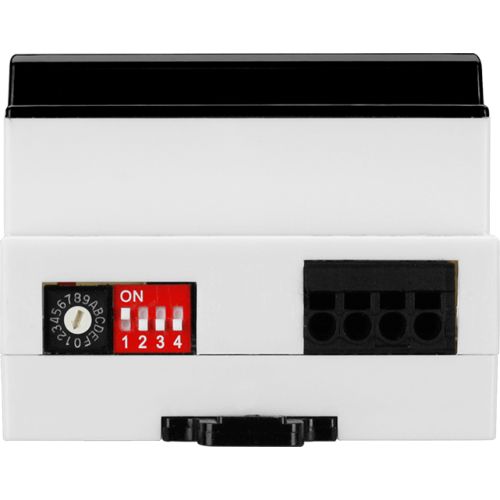

LC-223H CR ICP DAS Lighting Control



LC-223H CR

1-channel Dimmer Control Module with 2-channel Dry Contact Input Trigger



€ 115,12

(VAT excluded)

€ 140,45(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 140,45

Availability: 15 business days

SKU: 118468

Model: LC-223H CR

Need Help?


  • Isolated Analog Output (0 to 20 mA, 0 to 10 V, 1 to 10 V) For Dimming Control
  • Relay Operation Current: 16 A (Res. Load)
  • Support Lighting Module (Max.):
  • Incandescent Lamp: 40W/ 220VAC * 8 Sets
  • LED(Electronic ballast): 40W/ 220VAC * 10 Sets
  • Provide Power Relay Output to turn ON/OFF the Dimming Ballast
  • Isolated Analog Output(0 to 20 mA, 0 to 10 V, 1 to 10 V) for Dimming Control
  • Provide the wall Switch function to Control the Brightness of the Dimming Ballast
  • Provide The Dry Contact to trigger the Brightness of the Dimming Ballast
  • Supports Modbus RTU and DCON Protocols


The LC-223H is an easy-to-use dimming ballast control module that can be easily installed and operated without requiring specialist knowledge or skills. The brightness of a fluorescent lamp can be controlled using a dimmer, either via digital input or a host controller. The digital input can be used to directly control the light value of the luminous flux in sequence from 10% to 100%, without the need for a remote host controller. 4 kV ESD,2kV SURGE protection and 2500 VDC intra-module isolation are also provided. When required, communication with the LC-223H is programmable based on the Modbus RTU/DCON protocol, with the added benefit that diff erent addresses can be set via hardware configuration.



Intra-module Isolation: 2500 VDC
EMS Protection
EFT (IEC 61000-4-4): ±4 kV for Power
ESD (IEC 61000-4-2): ±4 kV contact for each Terminal
±4 kV Air for Random Point
Surge (IEC 61000-4-5): ±2 kV for Power

LED Indicators

Status: 1 LED as Power Indicator

Analog Output

Channels: 1
Type: 0 ~ 20 mA, 4 ~ 20 mA, 0 ~ 10 V, 1 ~ 10 V
Resolution: 12-bit
Accuracy: ±0.1% of FSR
DA Output Response Time: 10 ms
Voltage Output Capability: 20 mA
Current Load Resistance: 450 Ω

Digital Input

Channels: Dry Contact: 2 for the Dimming Trigger
Wet Contact: 1 for the Wall Switch Control
Type: Dry + Wet Contact
ON Voltage Level: Wet: 65 VAC ~ 240 VAC
Dry: Close to GND
OFF Voltage Level: Wet: 58 VAC Max.
Dry: Open

Relay Output

Channels: 1
Type: Power Relay, Form A (SPST N.O.)
Contact Rating: 16 A (Res. load)
(1).250 VAC (Recommend Working Current 1.5 A)
Operate Time: 10 ms Max.
Release Time: 5 ms Max.
Electrical Endurance: 120,000 ops.
Mechanical Endurance: 5,000,000 ops.
Power on Value: Yes, programmable
Safe Value: Yes, programmable
Application Specification: (1).Incandescent Lamp: 40W/220VAC * 8 Sets
(2).LED (Electronic ballast): 40W/220VAC * 10 Sets

COM Ports

Ports: 1 x RS-485
Baud Rate: 1200 ~ 115200 bps
Data Format: (N, 8, 1)
Protocol: DCON, Modbus RTU


Reverse Polarity Protection: Yes
Consumption: 1.5 W Max.
Powered from Terminal Block: Yes, 10 ~ 30 VDC


Dimensions (mm): 72 x 100 x 59 (W x L x H)

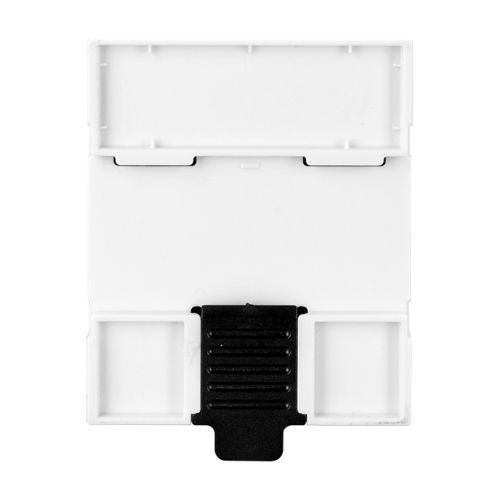

Installation: DIN-Rail


Operating Temperature: -25 ~ +75°C
Storage Temperature: -30 ~ +80°C
Humidity: 10 ~ 95% RH, Non-condensing
