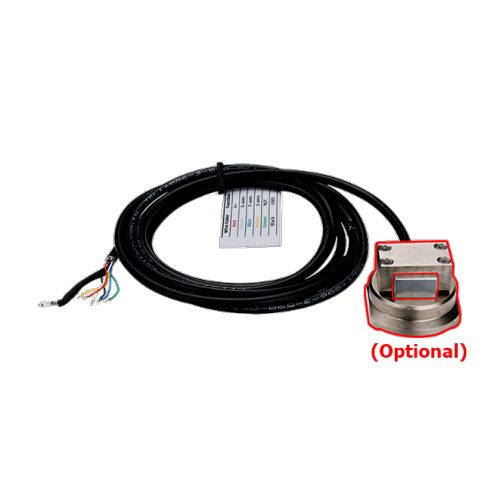

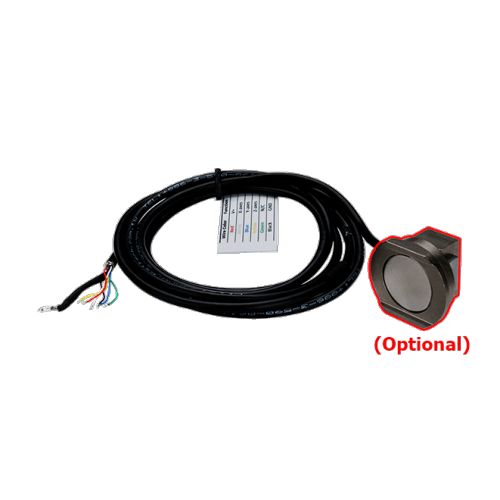

iSN-703-F1-L015 CR, 3-axis accelerometer, Range 18g, Sensitivity 400mV/g, Frequency up to 1 kHz, includes 150 cm cable
iSN-703-F1-L015 CR
3-axis accelerometer, Range 18g, Sensitivity 400mV/g, Frequency up to 1 kHz, includes 150 cm cable
Free Shipping
Features
3 wire voltage accelerometer
Triaxial design
Measuring range is ±18g
Frequency response ranges from 10Hz to 1kHz
Introduction
iSN-703-F1-L015 is a high sensitivity accelerometer, and it is also a triaxial accelerometer that simultaneously measures vibration in three orthogonal axes. This sensor is designed primarily for vibration analysis applications.
Specifications
Vibration Measurement
Axes: 3
Sensor Type: MEMS
Amplitude Range: ±18g
Frequency Range: 10Hz~1KHz
Sensitivity: 400mV/g per axis
Bais Voltage: 10±0.5VDC
Power:
Input Range: 22~26VDC,3mA
Mechanical:
Dimensions (mm): (15±0.05) x (21±0.05) x (8.5±0.05) (W x L x H)
Cable:
Length: 1.5m
