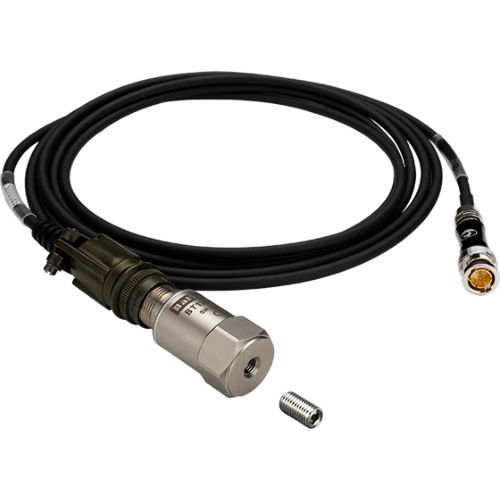

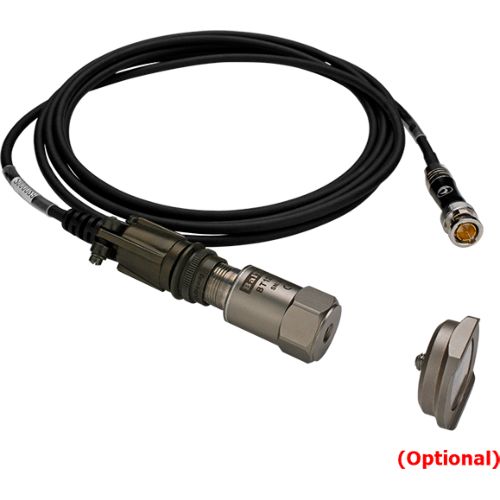

iSN-701-F15-L060 CR ICP DAS axis Accelerometer

iSN-701-F15-L060 CR ICP DAS

iSN-701-F15-L060 CR ICP DAS

iSN-701-F15-L060 CR

1-axis accelerometer, Range 80g, Sensitivity 100mV/g, Frequency up to 15 kHz, includes 600 cm cable

Quantity:

Price

€ 655,31

(VAT excluded)

€ 799,48(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 799,48

Availability: 15 business days

SKU: 118908

Model: iSN-701-F15-L060 CR

iSN-701-F15-L060 CR technical sheet

iSN-701-F15-L060 CR datasheet

iSN-701-F15-L060 CR scheda prodotto

Print Product Sheet

Need Help?

Write us
an email

Call us
051 6604005
Share

 Features

  • IEPE accelerometer
  • Homotaxial design
  • Measuring range is ±80g
  • Frequency response ranges from 0.5Hz to 15kHz


Introduction

iSN-701-F15-L060 is a high sensitivity accelerometer, and it is also a homotaxial IEPE accelerometer. This sensor is designed primarily for vibration analysis applications.


Specifications

Vibration Measurement
Axes: 1
Sensor Type: IEPE
Amplitude Range: ±80g
Frequency Range: 0.5Hz~15kHz
Sensitivity: 100mV/g
Bais Voltage: 10~14VDC

Power:
Input Range: 18~30VDC,
2~10mA

Mechanical:
Dimensions (mm): Ø22.9 x 53.3

Cable:
Length: 6m
