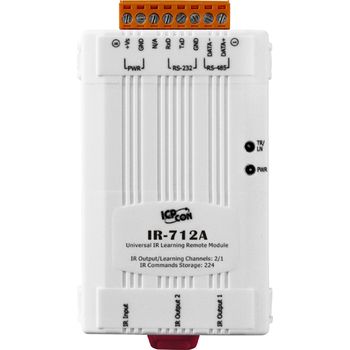

IR-712A CR ICP DAS learning remote modules


IR-712A CR

Universal IR Infrared Learning Remote Module to Modbus RTU Converter (2 IR outputs, 224 IR Cmds), with 2 CA-IR-SH2251 & 1 CA-0910, communicable over RS-485 and RS-232, supports operating temperature from -25°C ~ +75°C



€ 123,40

(VAT excluded)

€ 150,55(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 150,55

Availability: 15 business days

SKU: 93068

Model: IR-712A CR

Need Help?

  • 2 IR output channels for controlling multiple devices
  • 1 IR learning input
  • IR command storage: 224
  • Supports 6 learning IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
  • Supports RS-232 and RS-485 serial interface
  • Supports function code 0x06/0x10 of Modbus/RTU protocol for IR emitting
  • Assignable Modbus Network IDs: 1~247
  • Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
  • Configurable NONE / ODD / EVEN parity and 1 or 2 stop bits
  • Provides transmitting / learning and power indication LEDs
  • Built-in Watchdog
  • RoHS Compliance
  • Provides API library for users' program development easily


IR-712A is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712A supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide flexible expansion and control on the modules. Besides, IR-712A software utility provides users with easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g. PAC, PLC, PC… etc.), IR-712A is well-suited for smart home and building automation.

hardware specifications

IR Interface
IR Output Channels: 2 channels with 3.5 mm audio jack
IR Learning Input: 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz..
IR Commands Storage: 224
Serial Communication Interface
Connector: 8-pin (RS-485, RS-232, and Power) screw terminal connecter
COM1: RS-232 (TxD, RxD, GND)
COM2: RS-485 (DATA+, DATA-)
Baud Rate: 9600, 19200, 38400, 57600, 115200 bps
Protocol: Modbus/RTU (slave)
LED Indicator
LED: 2 LEDs: TR/LN (IR Transmitting/Learning) and PWR (Power)
Power Supply: +10 ~ +30 VDC
Power Consumption: Stand By:  0.6 W

       Using 1 IR output: 2.3 W

       Using 2 IR Outputs: 4 W (Max.)
Installation: DIN-Rail mounting
Dimensions: 52 mm x 93 mm x 27 mm (W x H x L)
Dip Switch: FW (Firmware update mode) / OP (Firmware operation mode)
Operating Temperature: -25°C ~ +75°C
Storage Temperature: -30°C ~ +80°C
Humidity: 10%~90%, non-condensing
