IR-712-MTCP-5 CR
Universal IR Learning Module (2x IR outputs, 512x IR cmds) (Ethernet) Includes 2x CA-IR-SH2251-5 emitter cables
IR-712-MTCP is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. IR-712-MTCP supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied Ethernet interface with Modbus TCP/UDP protocol provides flexible expansion and control on the modules. Besides, the IR utility provides easy configuration, learning, test and storage of IR commands. As a replacement of IR remote controls and a module that can be easily integrated with Modbus client devices (e.g. PAC, PLC, PC… etc.), IR-712-MTCP is well-suited for smart home and building automation.
IR-712-MTCP-5 CR: Universal IR Learning Remote Module (MBTCP, 2 IR outputs, 512 IR Cmd) with 2 CA-IR-SH2251-5 (RoHS)
- 2 IR output channels for controlling multiple devices
- 1 IR learning input
- IR command storage: 512
- Supports IR carrier frequencies: 33、36、37、38、40 and 56 kHz.
- Supports Ethernet interface.
- Supports Modbus TCP/UDP protocol.
- Provides IR transmitting/learning and power indication LEDs.
- Built-in Watchdog.
- RoHS Compliance
IR Interface

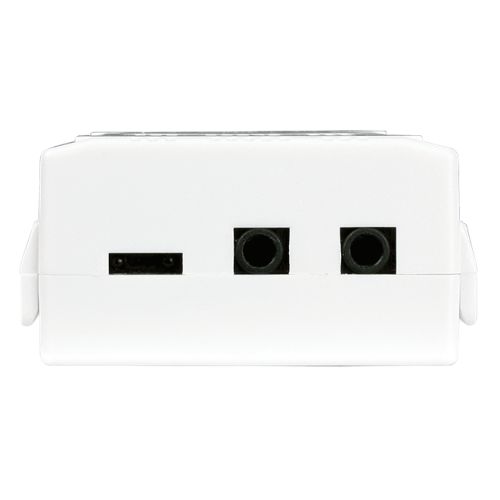

IR Output Channels: 2 channels with 3.5 mm audio jack
IR Learning Input: 1 channel. Supports 6 IR carrier frequencies: 33, 36, 37, 38, 40, 56 kHz.
Communication Interface

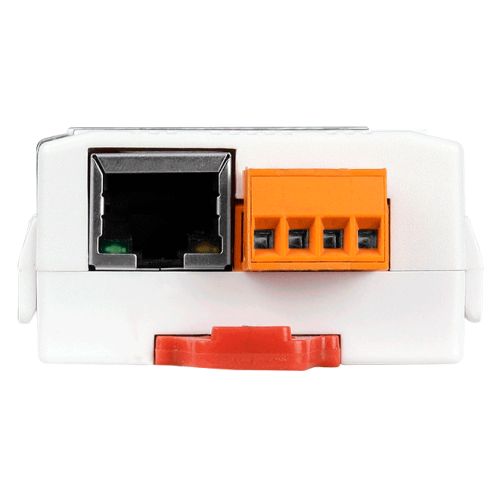

Ethernet: 10/100 Base-TX, 8-Pin RJ-45 x1 (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
Protocol: Modbus TCP/UDP (server)
LED Indicator
LED: 2 LEDs: TR/LN (IR Transmitting/Learning) and PWR (Power)
Power
Connector: 4-pin (F.G., N/A, +Vs, and GND) screw terminal connecter
Power Supply: +10 ~ +30 VDC
Power Consumption:
- Stand By: 1.7 W
- Using 1 IR output: 3.4 W
- Using 2 IR Outputs: 5.8 W (Max.)
Mechanism
Installation: DIN-Rail mounting
Dimensions: 52 mm x 85 mm x 27 mm (W x H x L)
Dip Switch: FW (Firmware update mode) / OP (Firmware operation mode)
Environmental
Operating Temperature: -25°C ~ +75°C
Storage Temperature: -30°C ~ +80°C
Humidity: 10%~90%, non-condensing
