IR-210 CR ICP DAS Fieldbus Converters

features and benefits

IR-210 is a universal IR learning remote module which can learn IR remote commands of diverse electronic devices.
The learning commands can be stored in the module or saved to a file.
IR-210 supplies 6 IR output channels for individual or simultaneous control on multiple devices.
The accompanied RS-232 and RS-485 interfaces with Modbus RTU and DCON protocols provide flexible expansion and control on the module.
Besides, IR-210 software utility provides users with easy configuration, learning, test and storage of IR commands.
As a replacement of IR remote controls and a module that can be easily integrated with Modbus master devices (e.g.
PAC, PLC, PC... etc.), IR-210 is well-suited for smart home and building automation.

• 6 IR output channels.
• 1 IR learning input.
• Supports 6 IR carrier frequencies: 33,36,37,38,40 and 56 kHz.
• IR command capacity: 224.

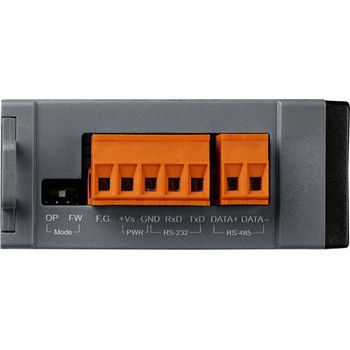

• Supports RS-232 and RS-485 serial interface.
• Supports Modbus RTU protocol to emit IR commands.
• Provides ASCII String Command (DCON protocol) to emit IR commands.
• Provides API library for PC program development.
• Includes 2x CA-IR-SH2251 IR emitter cables.
• (Remote control range: CA-IR-SH2251 is 80% of CA-IR-SH2251-5)
