iP-8811 CR ICP DAS MiniOS7 Based

iP-8811 CR ICP DAS

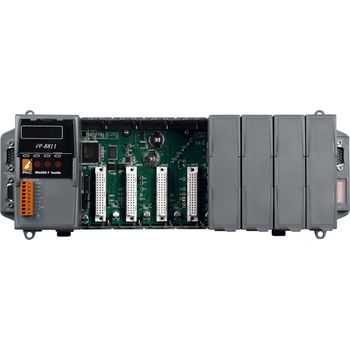

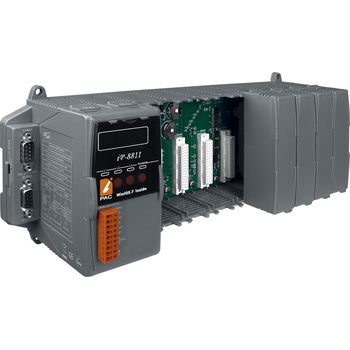

iP-8811 CR

8-slot Serial PAC with 80186-80 CPU and MiniOS7



€ 522,14

(VAT excluded)

€ 637,01(VAT included)

Prezzo di 1 pz. iva (22%) inclusa: € 637,01

Availability: 15 business days

SKU: 4247

Model: iP-8811 CR

Need Help?

  • 80186, 80 MHz CPU
  • MiniOS7 Inside
  • C Language Programming
    • TCP/IP Library
    • Modbus Library
  • 4/8 Slots for High Profile I/O Modules
  • Rich I/O Expansion Ability (RS-232/485, Ethernet, CAN)
  • Dual Battery Backup SRAM (512KB)
  • Various Storage Media
    • 512 KB Flash
    • 16 KB EEPROM
    • microSD
  • Various Communication Interfaces
    • Dual 10/100M Base-TX Ethernet
    • 4 Serial Ports (RS-232/485)
  • 64-bit Hardware Serial Number
  • Redundant Power Inputs
  • Operating Temperature: -25 ~ +75°C


The iPAC-8000 is the compact size PAC(Programmable Automation Controller). It supports a variety of connectivity options including Dual 10/100 Base-TX Ethernet ports, one RS-232/485 port, one RS-485 port and two RS-232 ports, and 4/8 slots for high performance Parallel I/O modules (high profile I-8K series) and Serial I/O modules (high profile I-87K series), etc.
The iPAC-8000 is designed for industrial monitoring, measurement and controlling. It has redundant power inputs with 1 kV isolation from noise and surges, and a wide range of operating temperature (-25 ~ +75°C). It can work in the harsh and rough environment.


System Software
CPU: MiniOS7 (DOS-like embedded operating system)
Program Download Interface: RS-232 (COM1) or Ethernet
Programming Language: C language
Compilers to create.exe files:     TC++ 1.01

TC 2.01

BC++3.1 ~ 5.2x

MSC 6.0

MSVC++ (before version 1.5.2)
CPU Module
CPU: 80186, 80 MHz
SRAM: 512 KB
Dual Battery Backup SRAM: 512 KB; data valid up to 5 years
Flash: 512 KB; with Write Protect Switch
Expansion Flash Memory: microSD socket (can support microSDHC up to 32 GB)
NAND Flash Disk: -
Dual Battery Backup SRAM: 512 KB (for 5 years data rretention)
NVRAM: 31 bytes (battery backup, data valid up to 5 years)
RTC (Real Time Clock): Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number: Yes, for Software Copy Protection
Watchdog Timers: Yes (0.8 second)
DIP Switch: Yes (8 bits)
Communication Ports
Ethernet: -
COM 0: Internal communication with the high profile I-87K series modules in slots
COM 1: RS-232 (to update firmware) (RxD, TxD and GND); non-isolated
COM 2: RS-485 (Data+, Data-) with internal self-tuner ASIC; 3000 VDC isolated
COM 3: RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 4: RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
LED Display: Yes, 5-Digit
Programmable LED Indicators: 3
Push Buttons: 4
Buzzer: -
I/O expansion slots
Slot Number: 8

Note: For High Profile I-8K and I-87K Modules Only
Dimensions (W x L x H): 355 x 132 x 111 mm
Installation: DIN-Rail or Wall Mounting
Operating Temperature: -25 °C ~ +75 °C
Storage Temperature: -30 °C ~ +80 °C
Humidity: 10 ~ 90% RH (non-condensing)
Input Range: +10 ~ +30 VDC
Isolation: 1 kV
Redundant Power Inputs: Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity: 30 W
Consumption: 7.2 W
