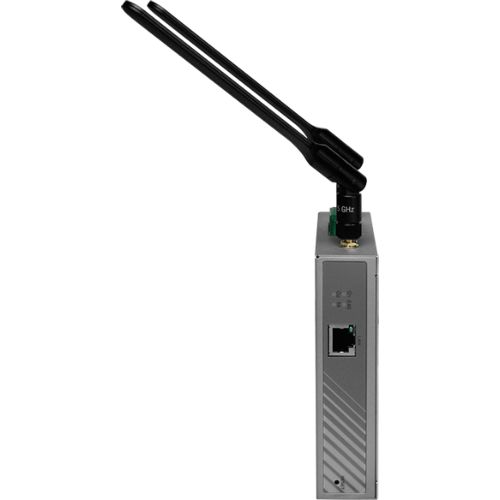

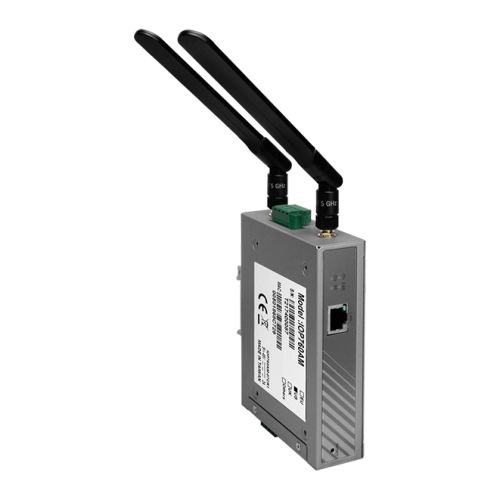

IOP760AM CR
Ethernet/UART to Wi-Fi Converter (with category A plug type)
IOP760AM is a wireless converter . The data can be exchanged via the three different interfaces Wi-Fi, Ethernet and UART. The Wi-Fi interface supports IEEE 802.11 b/g/n/ac standard. Users can select IEEE 802.11 b/g/n for 2.4GHz connections or select IEEE 802.11 ac for 5GHz connections. When the Wi-Fi strength is lower than the threshold setting, IOP760AM can connect to another stronger one via the roaming function. The Ethernet interface can be connected by the Ethernet switch. All the Ethernet devices exchange data via the Ethernet switch and IOP760AM. In the UART communication, data can be sent directly or formed by Modbus protocol.
- Wi‐Fi Uplink or Ethernet WAN Connection.
- One RS-232/485 for Modbus RTU Connection.
- IEEE 802.11a/b/g/n/ac Wi-Fi Compliance.
- One LAN Port for Linking Local Ethernet Devices.
- One DI/One DO For Device Triggering or Event Reporting
- Designed by Solid And Easy‐to‐Mount Metal Body
FUNCTIONS
- Ethernet/UART to Wi-Fi Converter
- Roaming
- Command Line Interface (CLI)
- Website Configuration Interface
- Modbus Connections
HARDWARE SPECIFICATIONS
Device Interface
Wi-Fi: Standard: IEEE 802.11a/b/g/n/ac
Security: WEP / WPA / WPA2 / WPA-PSK / WPA2-PSK
Channel: Auto
Ethernet: 1* RJ45 FE

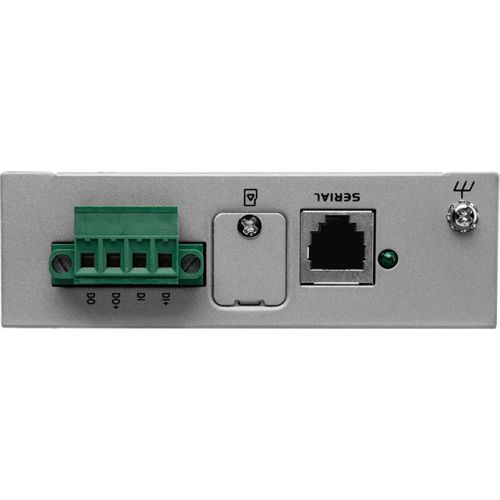

UART: Interface: 1 x RJ10 (RS-232/RS-485)
Baudrate: RS-232: 9600 / 19200 / 38400 / 57600 / 115200
RS-485: 9600 / 19200 / 38400 / 57600 / 115200 / 230400 / 460800
Data Bits: 8 / 7
Stop Bits: 1 / 2
I/O
DI: 1* DI (“Logic 0”: 0~3V, “Logic 1”: 3.3V~30V)
DO: 1* DO (Relay Mode, up to 30V / 1A)
Power
Power Input: +9~ 48 VDC
Mechanism
Mounting: DIN-Rail
Bracket
Dimensions (W x L x H): 31x 99 x131mm (without Mounting kit)
31x108x131mm (with DIN Rail kit)
167x 99 x 39mm (with Bracket kit)
Environment
Operating Temperature: -20 ℃ ~ 60 ℃
Storage Temperature: -40 ℃ ~ 85 ℃
Humidity: -20 ℃ ~ 60 ℃
