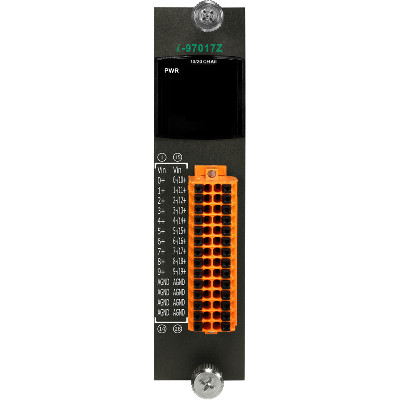

I-97017Z CR
10/20-ch Analog Input Module with High Voltage Protection
- 10-channel Differential or 20-channel Single-ended Inputs
- Jumper Selectable Voltage or Current Input
- 240 Vrms Overvoltage Protection
- High Resolution: 16-bits
- Supports Fast Mode and Normal Mode
- 4 kV ESD Protection
- 3000 VDC Intra-module Isolation
- Individual Channel Configuration
- Dual Watchdog
- RoHS Compliance
- Wide Operating Temperature Range: -25 to +75°C
The I-97017Z is an analog input module that includes 10 differential or 20 single-ended analog input channels. It provides a programmable input range on all analog inputs. (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V,+/-10 V, +/-20 mA or 0 ~ +20 mA) Each analog input can be configured for an individual range that provides 240 Vrms high overvoltage protection and 50mA overcurrent protection at 110 VDC/VAC. Voltage and current inputs are jumper selectable. The sampling rate of the I-97017Z is adjustable and is available in either fast or normal mode. The module also features perchannel open wire detection for +4 ~ +20 mA inputs that provides 4 KV ESD protection as well as 3000 VDC intra-module isolation.
Analog Input
Channels: 10 Differential or 20 Single-ended (See Note 1), Jumper selectable
Range: ±150 mV, ±500 mV, ±1 VDC, ±5 VDC, ±10 VDC, ±20 mA, 0 ~ +20 mA, +4 ~ +20 mA (jumper selectable)
Resolution: 16-bit
Accuracy: Normal Mode: ±0.1% of FSR
Fast Mode: ±0.5% of FSR
Sampling Rate: Normal Mode: 10 Hz (Total)
Fast Mode: 50 Hz (Total)
Band Width: Normal Mode 15.7 Hz
Fast Mode: 78.7 Hz
Zero Drift: ±20 μV/°C
Span Drift: ±25 ppm/°C
Common Mode Rejection: 86 dB
Normal Mode Rejection: 100 dB
Input Impedance: Voltage: Differential: 2 MΩ
Single-ended: 1 MΩ
Current: 125 Ω
Overvoltage Protection: Differential: 240 Vrms
Single-ended: 150 Vrms
Individual Channel Configuration: Yes
Overcurrent Protection: 50 mA Max. at 110 VDC/VAC Max.
Communication
Interface: RS-485
Format: N, 8, 1
Baud Rate: 1200 to 115200 bps
Protocol: DCON
Dual Watchdog: Yes, Module (1.6 Seconds), Communication (Programmable)
LED Display
System LED Indictors: Yes, 1 as Power/Communication Indicator
I/O LED Indicators: -
Isolation
Intra-module Isolation, Field-to-Logic: 3000 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
RS Immunity (IEC 61000-4-3): ±4 kV for Power
Power
Power Consumption: 0.5 W Max.
Mechanical
Dimensions (L x W x H): 144 mm x 30.3 mm x 134 mm
80 mm x 36 mm x 28 mm
Environment
Operating Temperature: -25 to +75°C
Storage Temperature: -40 to +85°C
Humidity: 10 to 90% RH, non-condensing
