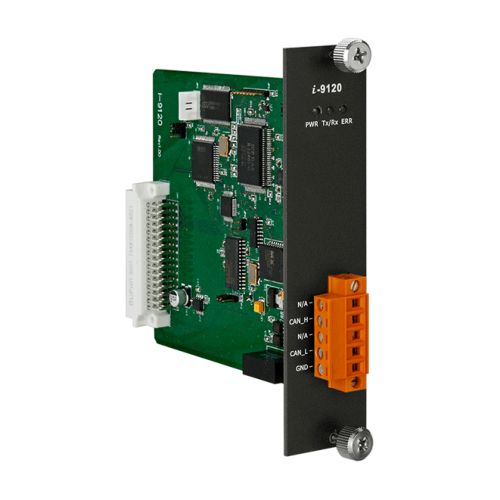

I-9120 CR, 1-port Programmable CAN Module (Parallel Bus Type)
I-9120 CR
1-port Programmable CAN Module (Parallel Bus Type)
Features
Common Features
- Support WP-9x21-CE7 (driver for LinPAC and XPAC will be Available Soon)
- Allow user to program user-defined firmware in I-9120
CAN Port Features
- 2500 Vrms photo-isolation protection on CAN side
- Compatible with CAN specification 2.0 parts A and B
- Provide default baud rate: 10k, 20k, 50k, 125k, 250k, 500k, 800 k, 1 M bps
- Allow user-defined baud rate
- Cyclic transmission precision: ±0.5ms precision when cyclic time is below 10ms , ±1% error when cyclic time exceeds 10ms
- Provide 5 sets of cyclic transmission
Software Utility Features
- Utility tool for downloading user-defined firmware and updating default firmware
- Provide eVC++4.0, VC6, VC++ 2005, C#.net 2005, VB.net 2005 demos and library
Introduction

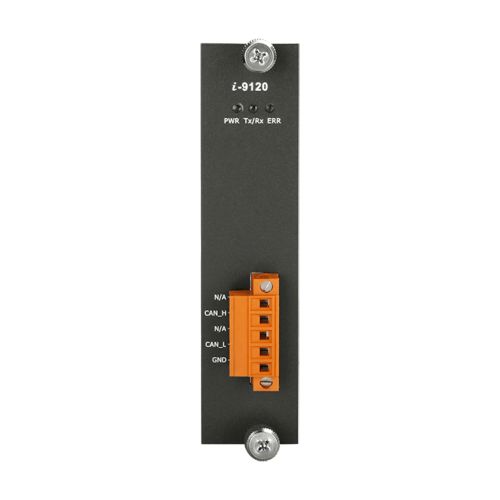

The CAN (Controller Area Network) is a serial communication bus especially suited to interconnect smart devices to build smart systems or sub-system. It efficiently supports distributed real-time control with a very high level of security. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted. As standalone CAN controller, I-9120 with WinPAC-9000-CE7 series MCU (main control unit) represents an economic solution. It has one CAN communication port with 5-pin screw terminal connector, and is useful for a wide range of CAN applications. Besides, I-9120 uses the new Phillips SJA1000T and transceiver 82C250, which provide both CAN 2.0A and 2.0B specific, re-transmission function, bus arbitration and error detection. Combining the benefits of WinPAC-9000-CE7 series MCU without increasing the CPU loading heavily, it could be a powerful multi CAN port programmable device server by driving the program in the 186 CPU of I-9120. It can also communicate with other kinds of communication interface, such as RS-232/RS-485/Ethernet ports to be a programmable device server. Therefore, users can design the various applications between different communication protocols.
Specifications
Software
Driver: WP-9000-CE7
SDK: TC/BC/TC++/BC++, eVC++ 4.0, VC++ 2005, C#.net 2005, VB.net 2005
CPU Module
CPU: 80186, 80 MHz or compatible
EEPROM: 16 KB
Flash: 512 KB
SRAM: 512 KB
Watchdog Timer: Watchdog IC
LED Indicators
Status: 1 x Power
1 x CAN status
1 x Operating mode
CAN
Controller: NXP SJA1000T with 16 MHz clock
Baud Rate: 10 k ~ 1 M bps
Isolation: 3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor: Switch for 120 Ω terminal resistor
Specification: ISO-11898-2, CAN 2.0A and CAN 2.0B
Power
Consumption: 1.5 W
Mechanical:
Dimensions (mm): 31 x 91 x 115 (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 90% RH, Non-condensing
