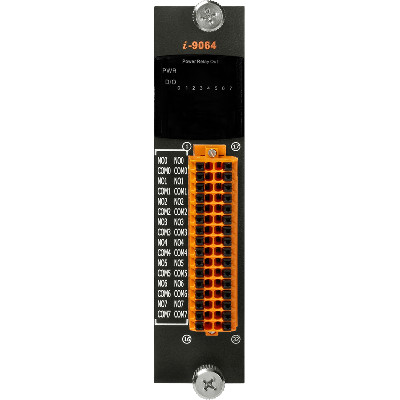

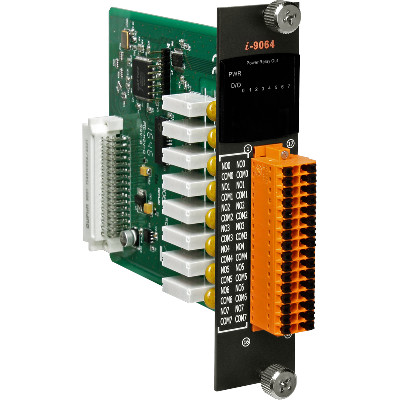

I-9064 CR ICP DAS Relay IO Modules

• 8-channel Power Relay Output
• Form A Power Relay Output
• Configurable Power-on Value
• Configurable Safe Value
• 4 kV ESD Protection
• 3000 VDC Intra-module Isolation
• Wide Operating Temperature Range: -25 to +75 °C


The I-9064 module provides 8 Form A Relay Output channels, and is an ideal solution for high-power applications. The I-9064 includes 8 LED indicators that can be used to monitor the status of the Relay Output channels, and options are available for configuring power-on and safe values. 4 kV ESD protection and 3000 VDC intra-module isolation are also provided to enhance the noise protection capabilities of the module in harsh industrial environments.

Digital Input

Channels:  8 (Form A)
Type:  Power Relay
Contact Rating:  5A @ 250 VAC (Resistive Load)
                           5A @ 30 VDC (Resistive Load)
Min. Contact Load:  10mA @ 5 VDC
Contact Material:  Gold-plated Silver Cadmium Alloy
Operate Time:  6 mS (Max.
Release Time:  3 mS (Max.)
Mechanical Endurance: 2 × 107 ops.
Electrical Endurance: 1 × 105 ops.
Power-on Value: Yes
Safe Value: Yes

LED Display

System LED Indictor: 1 LED as Power Indicator
I/O LED Indicator: 8 LEDs as Power Relay Status Indicators

Isolation

Intra-module Isolation, Field-to-Logic: 3000 VDC

EMS Protection

ESD(IEC 61000-4-2): ±4 kV Contact for Each Terminal
                                    ±8 kV Air for Random Point

Power

Power Consumption: 1 W Max.

Mechanical

Dimensions (L x W x H): 144 mm x 31 mm x 134 mm

Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
