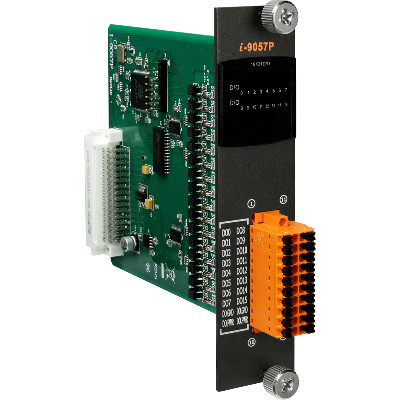

I-9057P CR ICP DAS Digital IO Modules

The I-9057P module offers 16 digital output channels, each of which features Photocouple isolation and supports sink-type output using an open collector. In addition, 16 LED indicators are included to monitor the status of digital output channels. The I-9057P integrates overcurrent, over-voltage and short-circuits protections for industrial use. 4 kV ESD protection and 3750 Vrms intra-module isolation are also provided as standard.
I-9057P CR: 16-channel Isolated Digital Output Module (RoHS)

• 16-channel Open Collector Output
• Sink-type Digital Output
• Channel Status LED Indicator
• Up to 60 VDC Overvoltage Protection
• Overload Protection
• Short-circuit Protection
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C

I/O Specifications

Digital Output

Channels: 16
Sink/Source (NPN/PNP): Sink
Output Type: Isolated Open Collector
Max. Load Current: 100mA/Channel
Load Voltage: +10 VDC ~ +50 VDC
Overvoltage Protection: 60 VDC
Overload Protection: 1.1 A
Short-circuit Protection: Yes

System Specifications

LED Display

System LED Indicator: 1 LED as Power Indicator
I/O LED Indicator: 16 LEDs as Digital Input Indicators

Isolation

Intra-module Isolation, Field-to-Logic: 3750 Vrms

EMS Protection

ESD(IEC 61000-4-2): ±4 kV Contact for Each Terminal ; ±8 kV Air for Random Point

Power

Power Consumption: 1 W Max.

Mechanical

Dimensions (L x W x H): 144 mm x 31 mm x 134 mm

Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
