I-9053P CR
16-ch Isolated Digital input (Dry, Wet) Module with Low Pass Filter
The I-9053P offers 16 channels for digital input, catering for both dry and wet contact, with an effective distance for dry contact of up to 500 meters. All channels feature photocouple isolation.
The I-9053P provides 16 LED indicators that can be used to monitor the DI channel status. 4 kV ESD protection and 3750 Vrms intramodule isolation are also provided to enhance noise immunity capabilities in industrial environments.

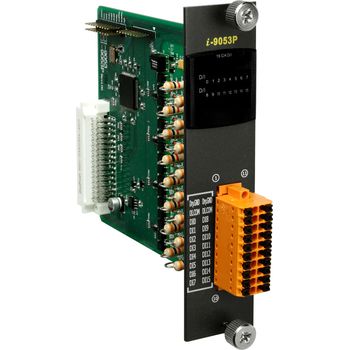

I-9053P CR: 16-channel Isolated Digital Input Module (RoHS)
- 16-channel Digital Input
- Channel Status LED Indicators
- Compatible with 24 V Levels
- Long Distance Measurement
- Dry and Wet Contact, Selectable via Wire Connections
- 3750 Vrms Intra-module Isolation
- Wide Operating Temperature Range: -25 ~ +75°C
I/O Specifications
Digital input
Channels: 16
Sink/Source (NPN/PNP): Sink/Source
Input Type: Dry, Wet
Dry Contact:
- On Voltage Level Close to GND
- Off Voltage Level Open
Wet Contact
- On Voltage Level +19 VDC ~ +30 VDC
- Off Voltage Level +11 VDC Max.
Input Impedance: 3 KΩ, 1W
Effective Distance for Dry Contact: 500 m Max.
Low Pass Filter
Response time:
- OFF to ON 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting; Default Setting is 10ms
- ON to OFF 1 ms/5 ms/10 ms/20 ms/40 ms/70 ms (by Jumper select) or CPU parameter setting; Default Setting is 10ms
System Specifications
LED Display
System LED Indictor: 1 LED as Power Indicator
I/O LED Indicator: 16 LEDs as Digital Input Indicators
Isolation
Intra-module Isolation, Field-to-Logic: 3750 Vrms
EMS Protection
ESD(IEC 61000-4-2): ±4 kV Contact for Each Terminal ; ±8 kV Air for Random Point
Power
Power Consumption: 1 W Max.
Mechanical
Dimensions (L x W x H): 144 mm x 31 mm x 134 mm
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
