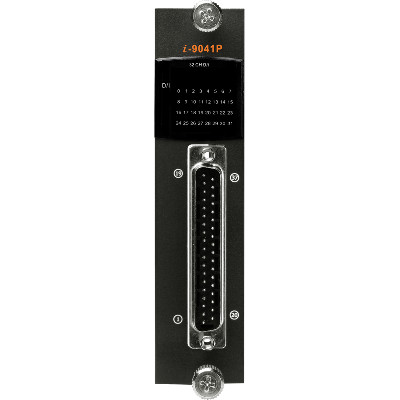

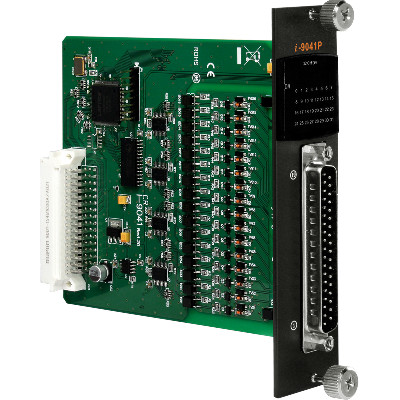

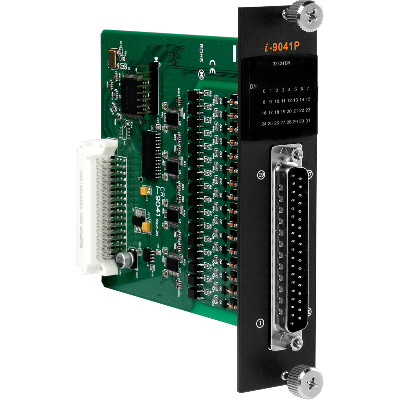

I-9041P CR
32-ch Isolated Digital output (Sink, NPN) Module
The I-9041P is a 32-channel sink-type digital output module. Each output channel is compatible with +10 VDC to +50 VDC signals, based on the external power supply. 32 LED indicators are provided to display the on/off status of every channel. Short circuit protection, overvoltage protection and overload protection are also included.
The I-9041P features 3750 Vrms field to logic isolation and 4 kV ESD protection, but doesn’t provide channel-to-channel isolation. It can be paired with a daughterboard, such as the DN-37-381-A for easy wiring, or the DN-8K32R for relay output, to connect to a wide range of industrial switches and devices.
I-9041P CR: 32-channel Isolated Digital Output Module (RoHS)
- 32-channel Open Collector Output
- Sink-type Digital Output
- Channel Status LED Indicators
- Up to 60 VDC Overvoltage Protection
- Overload Protection
- Short-circuit Protection
- 4 kV ESD Protection
- Optional Daughter Boards for Easy Field Wiring
- Wide Operating Temperature Range: -25 to +75°C
Digital Output
Channels: 32
Sink/Source (NPN/PNP): Sink
Output Type: Isolated Open Collector
Max Load Current: 100 mA/Channel
Load Voltage: +10 VDC ~ +50 VDC
Overvoltage Protection: 60 VDC
Overload Protection: 1.1 A
Short-circuit Protection: Yes
LED Display
System LED Indictors: 1 LED as Power Indicator
I/O LED Indicator: 32 LEDs as Digital Output Indicators
Isolation
Intra-module Isolation, Field to logic: 3750 Vrms
EMS Protection
ESD(IEC 61000-4-2):
±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Power
Power Consumption: 1.5 W Max.
Mechanical
Dimensions (L x W x H): 144 mm x 31 mm x 134 mm
I/O Connector: 37-pin D-sub Connector
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, non-condensing
