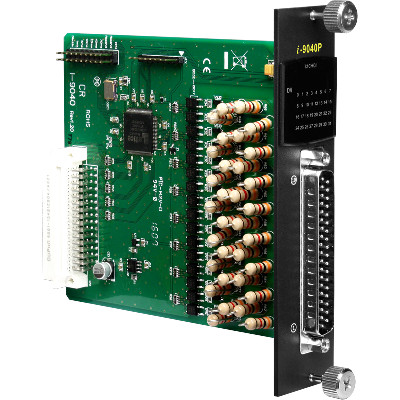

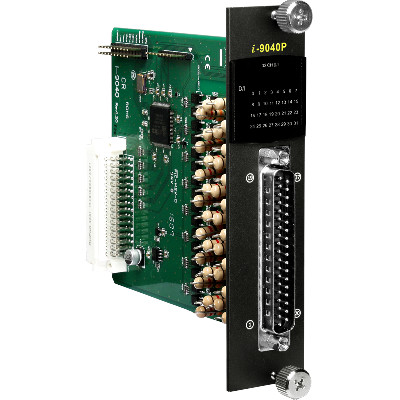

I-9040P CR
32-ch Isolated Digital input (Dry, Wet) Module with Low Pass Filter
The I-9040P is a 32-channel digital input module, each channel features photo-couple isolation and can be either sink- or source-type input, selectable by the wiring.
The ON voltage level of the I-9040P is ranged from +19 V to +30 V, while the OFF voltage level is under +11 V. It is suitable for +24 VDC digital input systems. By pairing with a daughter board such as the DN-37-381-A, the wiring is easier than ever. 32 LED indicators are provided for monitoring DI channel status, together with 4 kV ESD protection and 3750 VDC intra-module isolation.
I-9040P CR: 32-channel Isolated Digital Input with Low Pass Filter Module (RoHS)
- 32-channel Digital Input
- Sink-type or Source-type Digital Input
- Compatible with 24 V Levels
- Channel Status LED Indicators
- Optional Daughter Boards for Easy Field Wiring
- 3750 Vrms Intra-module Isolation
- Wide Operating Temperature Range: -25 ~ +75°C
Digital Input
Channels: 32
Sink/Source (NPN/PNP): Sink/Source
Input Type: One Common for All Digital Inputs
On Voltage Level: +19 V ~ +30 V
Off Voltage Level: +11 V Max.
Input Impedance: 3 KΩ, 0.5W
Channel-to-channel Isolation: -
Digital Input
Response time:
- OFF to ON: 1ms/5ms/10ms/20ms/40ms/70ms (by Jumper select) or CPU parameter setting Default Setting is 10ms
- ON to OFF: 1ms/5ms/10ms/20ms/40ms/70ms (by Jumper select) or CPU parameter setting Default Setting is 10mss
LED Display
System LED Indictors: 1 LED as Power Indicator
I/O LED Indicator: 32 LEDs as Digital Input Indicators
Isolation
Intra-module Isolation, Field to logic: 3750 Vrms
EMS Protection
ESD(IEC 61000-4-2): ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Power
Power Consumption: 1 W Max.
Mechanical
Dimensions (L x W x H): 144 mm x 31 mm x 134 mm
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
