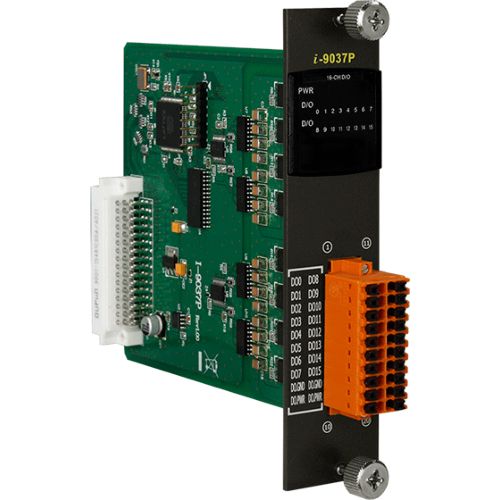

I-9037P CR, 16-ch Isolated Digital output (Source, PNP) Module
I-9037P CR
16-ch Isolated Digital output (Source, PNP) Module
Free Shipping
Features
- 16-channel Source-type Digital Output
- Channel Status LED Indicators
- Photo Couple Isolation
- Short Circuit Protection
- Power-on Value and Safe Value Options
- 4 kV ESD Protection
- 3750 VDC Intra-Module Isolation
Introduction
The I-9037P provides 16 channels of digital output with photo couple isolation. Source-type output with short circuit protection and up to 700 mA load current are supported for each channel. There are options for confi guring power-on and safe digital output values. 4 kV ESD protection and 3750 VDC intra-module isolation are also included to enrich the noise protection ability for industrial environment.
Specifications
Isolation
Intra-module Isolation: 3750 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status: 1 x Power and Communication
16 x DO
Digital Output
Channels: 16
Type: Isolated Open Collector
Sink/Source (NPN/PNP): Source
Load Voltage: + 5 to +30 VDC
Load Current: 700 mA/Channel
Overvoltage Protection: 60 VDC
Short-circuit Protection: Yes
Power
Consumption: 1 W Max.
Mechanical
Dimensions (mm): 31 mm x 134 mm x 144 mm
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +80 °C
Humidity: 10 ~ 95% RH, Non-condensing
