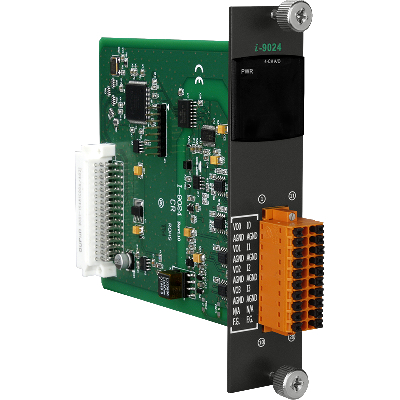

I-9024 CR
4-ch Analog Output Module
- 4-channel Voltage or Current Output
- Individual Channel Configuration
- Short Circuit Protection
- Open Wire Detection for Current Output
- RF Immunity
- 4 kV ESD Protection
- 3000 VDC Intra-module Isolation
- Wide Operating Temperature Range: -25 to +75 °C
INTRODUCTION
The I-9024 is a 14-bit analog output module, which off ers 4 single-ended analog output channels. Every channel can be programmed to an individual output range of ±10 V or 0 ~ +20 mA.
The I-9024 provides RF immunity level matching that defined by IEC 61000-4-3 standard, together with 4 kV ESD protection as well as 3000 VDC intra-module isolation.
I/O SPECIFICATIONS
Analog Output
Channels: 4
Current Output Wiring: Sink
Range: ±10 V, 0 ~ +20 mA
Resolution: 14-bit
Accuracy: Voltage ±0.1% of FSR
Current ±0.2% of FSR
Readback Accuracy: ±1% of FSR
Zero Drift: Voltage ±30 μV/°C
Current ±0.2 μV/°C
Span Drift: ±20 ppm/°C
Voltage Output Capability: 10 V @ 20 mA
Max Current Load Resistance: External+24V: 1050 Ω
SYSTEM SPECIFICATIONS
LED Indicators
System LED Indict: 1 LED as Power Indicator
I/O LED Indicator: -
Isolation
Intra-module Isolation, Field-to-Logic: 3000 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for Each Terminal
±8 kV Air for Random Point
Power
Power Consumption: 2 W Max.
Mechanical
Dimensions (L x W x H): 144 mm × 31 mm × 134 mm
Environment
Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85°C
Humidity: 10 ~ 90% RH, non-condensing
