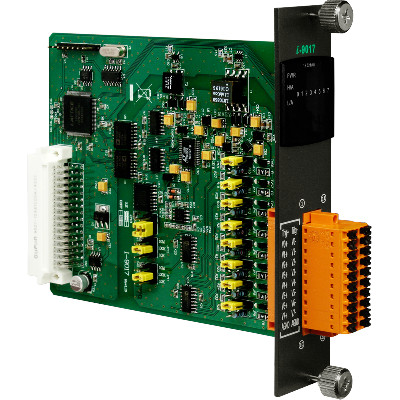

I-9017 CR ICP DAS Current IO Modules

• I-9017
• 16 Single-ended/8 Differential Input Channels
• Input Voltage Range: ±1.25 V, ±2.5 V, ±5 V, ±10 V
• Input Current Range: 0 mA ~±20 mA
• Input Impedance 20 K, 200 K, 20 M
• 14-bit 100 KHz AD Converter
• A/D Trigger Mode: Polling, Interrupt
• 4 kV ESD Protection
• Wide Operating Temperature Range: -25 to +75°C


The I-9017 is a high performance Analog Input module with 14 bits of resolution and a sampling rate of up to about 90K S/s. The I-9017 provides up to 16 single-ended or 8 differential input channels, which is selectable via a jumper setting.The I-9017 has qualification for 4 kV ESD protection as well as 2500 Vrms intra-module isolation.

Analog Input

Channels: 16-ch Single-ended/8-ch Differential
Voltage Input Range: ±1.25, ±2.5,
                                        5 V, ±10 V

Current Input Range: -20 mA ~ +20 mA
Resolution: 14-bit
Accuracy: ±0.1% of FSR

Sample Rate: Single Channel Polling Mode: about 90K S/s
                        Single Channel Interrupt Mode: 50K S/s
                        15-channel Scan Mode: 16 K S/s

Input Bandwidth: 100 KHz
Zero Drift: ± 0.1 uV/°C
Span Drift: ± 10 ppm/°C
Input Impedance: 20 K, 200 K, 20 M (Jumper Selectable): 125 Ω

LED Indicators

System LED Indict: 1 LED as Power Indicator
I/O LED Indicator: 16 LED as Status Indicator

Isolation

Intra-module Isolation, Field-to-Logic: 2500 Vrms

EMS Protection

ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
                                        ±8 kV Air for Random Point

Power

Power Consumption: 2 W Max.

Mechanical

Dimensions (L x W x H): 144 mm x 30.3 mm x 134 mm

Environment

Operating Temperature: -25 ~ +75°C
Storage Temperature: -40 ~ +85°C
Humidity: 10 ~ 90% RH, non-condensing
