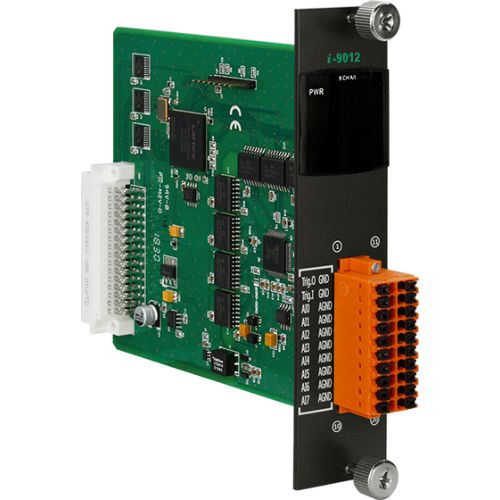

I-9012 CR, 8-ch Simultaneously Sampled Analog Input Module, 200 kS/s
I-9012 CR
8-ch Simultaneously Sampled Analog Input Module, 200 kS/s
Free Shipping
Features
- 16-bit AD Converter
- Simultaneously Sampled
- 200 kHz sample rate at single channel
- 2500 Vrms intra-module isolation
- 8 k byte FIFO
- 4 kV ESD Protection
- 2500 Vrms Intra-module Isolation
- Wide Operating Temperature Range: -25 to +75 °C
Introduction
The I-9012 is a high performance Analog Input module with 16 bits of resolution and a sampling rate up to 200 kS/s per channel. The I-9012 provide 8 channels and input range could be programmable to ± 5 V, ± 10 V Trigger Output and Trigger Input Pin cloud make multitude of I-9012 modules Simultaneously Sampled at same time. And the module also provides 4 kV ESD protection and 2500 Vrms intra-module isolation.
Specifications
Isolation
Intra-module Isolation: 2500 VDC
EMS Protection
ESD (IEC 61000-4-2): ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status: 1 x Power and Communication
Analog Input
Channels: 8-ch single-ended
Type: Voltage
Range: ±5 V, ±10 V
Accuracy: 0.05% of FSR @ 25 °C
Sampling Rate: Single Channel Pacer Internal Mode: 200 kS/s
Single Channel Pacer External Mode: 200 kS/s
Single Channel Polling Mode: 40 kS/s
FIFO Size: 8 k byte
Trigger Mode: Polling: Software trig
Pacer: Internal Clock, External Clock
Power
Consumption: 1 W Max.
Mechanical
Dimensions (mm): 31 x 134 x 144 (W x L x H)
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -40 ~ +85 °C
Humidity: 10 ~ 90% RH, Non-condensing
