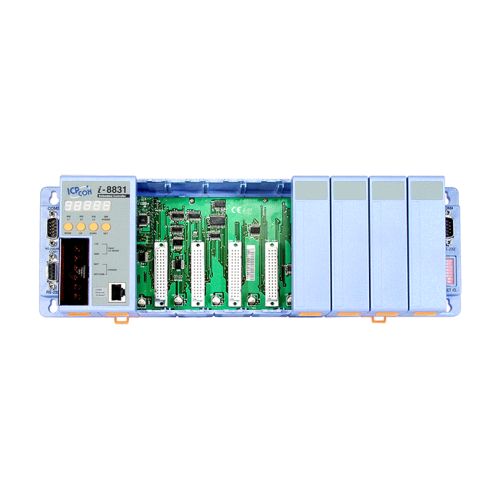

I-8831 CR, 8-slot Ethernet Embedded Controller with 80188-40 CPU and MiniOS7 (Blue Cover)
I-8831 CR
8-slot Ethernet Embedded Controller with 80188-40 CPU and MiniOS7 (Blue Cover)
Free Shipping
Features
- 80188 or compatible (8-bit and 40 MHz)
- MiniOS7 Embedded Operating System (DOS-like)
- 64-bit Hardware Serial Number for Software Protection
- Built-in Watchdog
- 7-Segment display x 5
- Serial Port x 3 (RS-232 or RS-485 communication Interface)
- Input Protection Circuity
- 8 Slots for I-8K and I-87K Modules
- Operating Temperature: -25 ~ +75 °C
Introduction
The I-8831 is an Ethernet embedded controllers with 8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4 ~ 0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.
To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.
The I-8831 is equipped with an ethernet port, and their backplane is equipped with 3 serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation.
By using S-256 (256 KBytes) or S-512 (512 KBytes)battery backup SRAM, they provide data logger storage function. (S256 and S512 are optional accessories.)
specifications
Software
OS: MiniOS7
Development: C Language
CPU Module
CPU: 80188 or compatible, 8-bit and 40 MHz
64-bit Hardware Serial Number: Yes
EEPROM: 2 KB
Flash: 512 KB
NVRAM: 31 Bytes
SRAM: 512 KB
Real Time Clock: Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer: Yes
Display
Type: 5 x Digit 7 Segment LED Display
LED Indicators
Status: 1 x Power, 3 x Programmable
I/O Expansion
I/O Type: I-8K, I-87K series
Slots: 8
COM Ports
Ports: 2 x RS-232, 1 x RS-232/RS-485
HMI
DIP Switch: 8-bit for address
Push Button: 4
Ethernet
Ports: 1 x RJ-45, 10Base NE2000 compatible
Power
Input Range: +10 ~ 30 VDC
Consumption: 5.1 W
Mechanical
Dimensions (mm): 355 x 110 x 77 (W x L x H)
Installation: DIN-Rail, Wall mounting
Environment
Operating Temperature: -25 ~ +75 °C
Storage Temperature: -30 ~ +85 °C
Humidity: 5 ~ 95 % RH, Non-condensing
