features and benefits

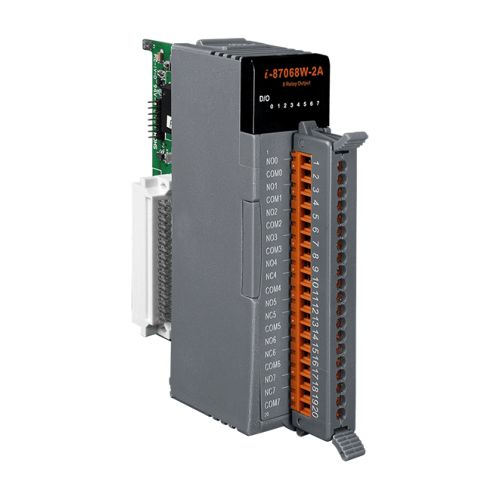

The I-87068W-2A provides 4 Form A signal relay output channels and 4 Form C signal relay output channels.
The I-87068W-2A include 8 LED indicators for monitoring the relay output status and provide options for configuring power-on and safe digital output values.
4 kV ESD protection and 3750 VDC intra-module isolation are also provided.
The I-87068W-2A is the ideal solution for small signal switching.
- Form A & Form C Relay Output
- Dual Watchdog
- Configurable Power-on Settings
- Configurable Safe Value Settings
specifications
CPU Module| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
|---|
Isolation| Intra-module Isolation | 2000 VDC |
|---|
EMS Protection| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal | ±8 kV Air for Random Point |
|---|
LED Indicators| Status | 1 x Power and Communication | 8 x I/O |
|---|
Relay Output| Channels | 8 (Form A × 4, Form C × 4) |
|---|
| Type | Signal Relay |
|---|
| Contact Rating | Form A Load Current: | 2 A @ 30 VDC (Max.) | 0.24 A @ 220 VDC (Max.) | 0.25 A @ 250 VAC (Max.) | 1 uA @ 100 uV (Min.) | Form C Load Current: | 2 A @ 30 VDC (Max.) | 0.24 A @ 220 VDC (Max.) | 0.25 A @ 250 VAC (Max.) | 1 uA @ 100 uV (Min.) |
|---|
| Operate Time | Form A: 3 ms (typical) | Form C: 3 ms (typical) |
|---|
| Release Time | Form A: 4 ms (typical) | Form C: 4 ms (typical) |
|---|
| Electrical Endurance | Form A: 2*10^5 ops | Form C: 2*10^5 ops |
|---|
| Mechanical Endurance | Form A: 10^8 ops | Form C: 10^8 ops |
|---|
| Power on Value | Yes |
|---|
| Safe Value | Yes |
|---|
COM Ports| Ports | 1 x RS-485 |
|---|
| Baud Rate | 1200 ~ 115200 bps |
|---|
| Data Format | N, 8, 1 |
|---|
| Protocol | DCON |
|---|
Power| Consumption | 1.2 W Max. |
|---|
Mechanical| Dimensions (mm) | 30 x 115 x 102 (W x L x H) |
|---|
Environment| Operating Temperature | -25 ~ +75 °C |
|---|
| Storage Temperature | -40 ~ +85 °C |
|---|
| Humidity | 10 ~ 95% RH, Non-condensing |
|---|
