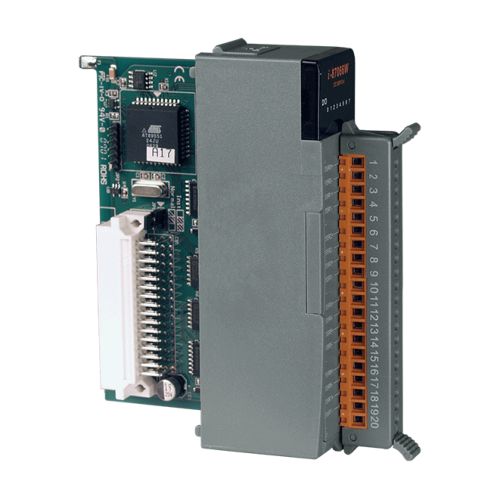

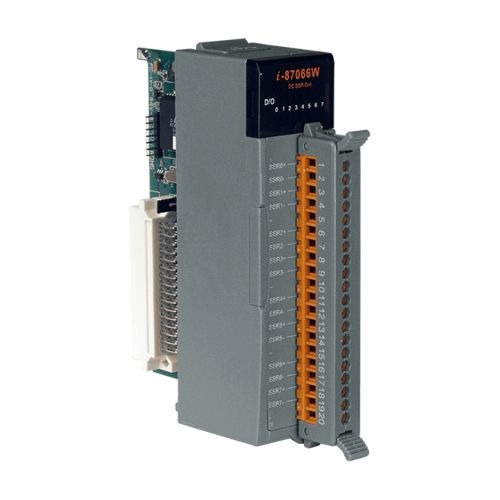

I-87066W-G CR ICP DAS Relay IO Modules

Digital Output

Output Channels: 8
Output Type: DC SSR, Form A (Normal Open)
RatedLoad Voltage: 3 to 30VDC
Rated Load Current: 1.0 Arms
Max. Operate Time: 1 ms
Max. Release Time: 1 ms
Max. On-state Voltage Drop: 1.2Vrms
Max. Off-state Leakage Current: 0.1mA at 30VDC
Insulation Resistance: Min. 1,000 MOhm, at 500VDC
Dielectric Strength: 2500 Vrms
Life: Long Life, Maintenance Free
4KV ESD Protection: Yes, contact for each terminal

Watchdog

Dual Watchdog: Yes, Module(1.6 sec) and Communication(Programable)
Safe Value(When Host Fail or Communication Fail): Yes
Power ON Preset Value: Yes

LED Display

1 LED as Power/ Communication Indicator
8 LEDs as DC-SSR Output Indicators

Power

Power Consumption: 0.6W

Environment

Operating Temperature: -25 to 75 °C
Storage Temperature: -30 to 75 °C
Humidity: 5 to 95% RH, non-condensing

Dimensions

30mm x 102mm x 115mm(W x L x H)
